New C6XP-2 - Eurodrill RH24X

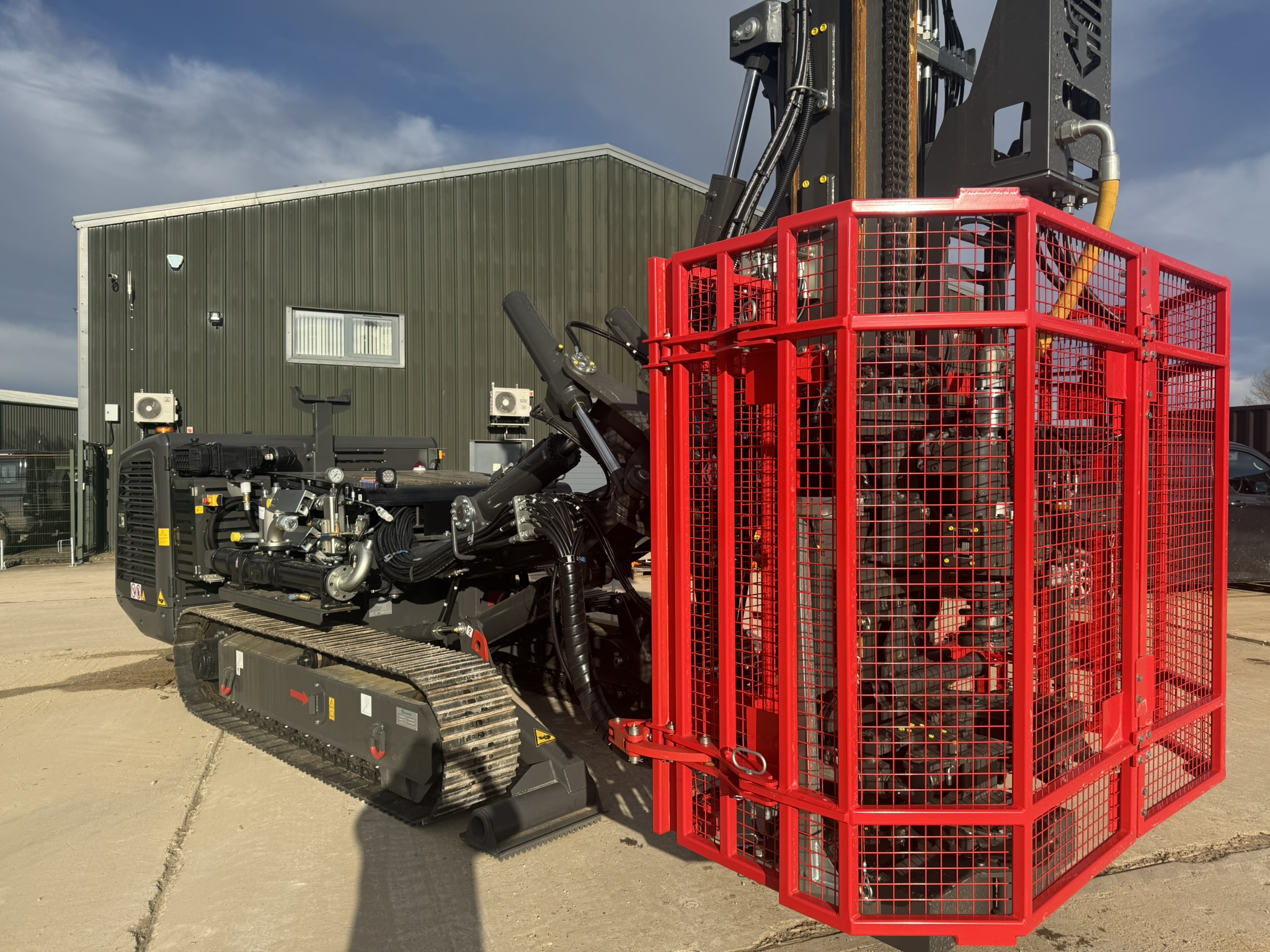

Introducing the Latest Addition to Our Hire Fleet: Our 3rd Casagrande C6XP-2 (2026 model) with Eurodrill RH24X T5 Rotary Head
Available Now!
Configured with a new Eurodrill rotary head package, specifically designed for the drilling, anchoring, and geotechnical sectors, the Casagrande C6XP-2 is optimised for large-diameter anchor and casing applications, as well as percussive drilling systems. Capable of handling casing up to 361mm diameter through its powerful double-clamp extraction system, the C6XP-2 is a highly versatile and proven drilling rig, ideally suited to the demands of today's construction and geotechnical projects.

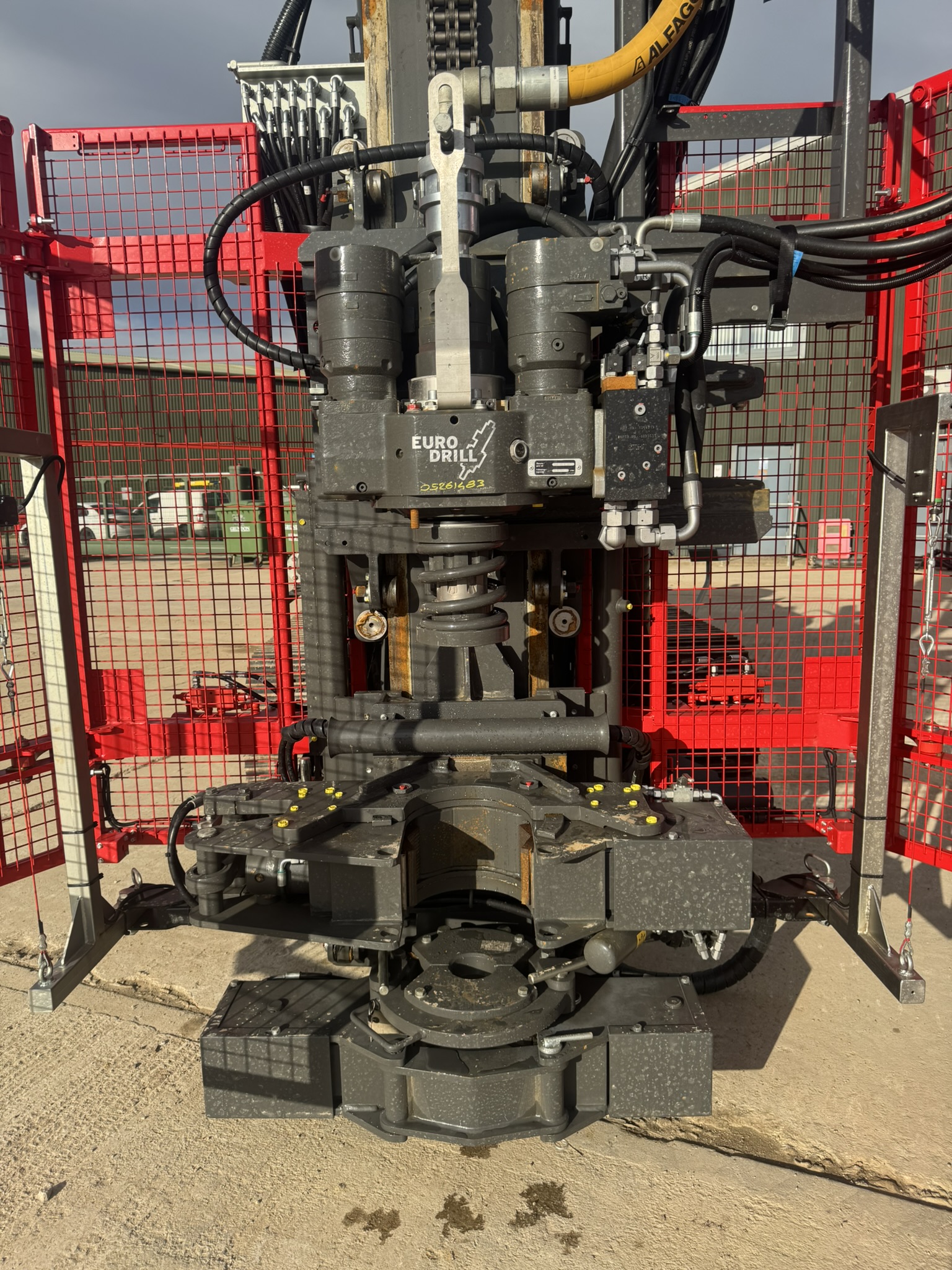

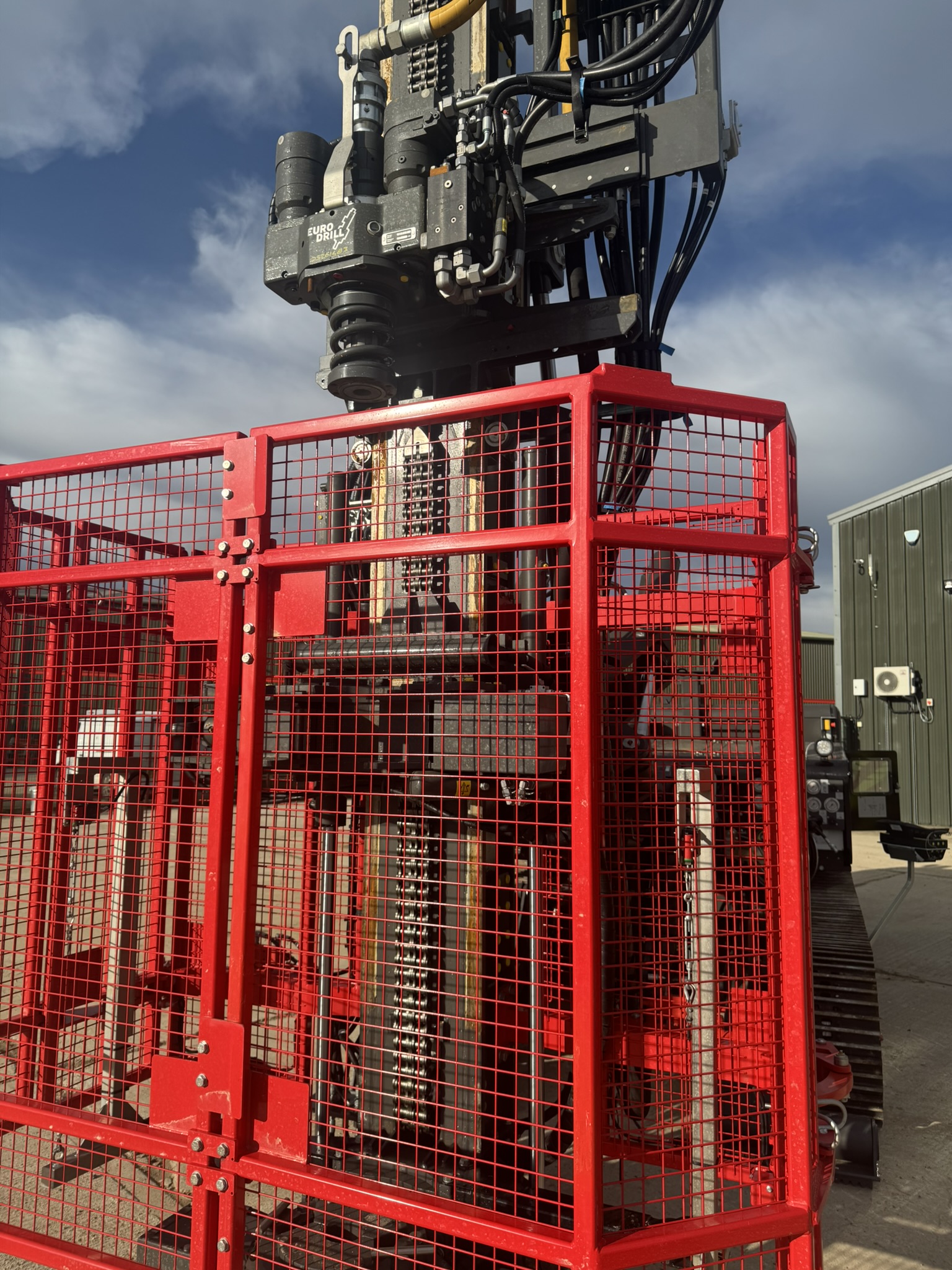

The RH24X rotary head, equipped with a new T5 hammer, delivers exceptional impact performance and drilling efficiency. The system can also be configured with top-flush-driven duplex or simplex drilling systems, enabling the use of DTH, ODEX, and a wide range of other popular drilling techniques utilising air, water, or mud flushing systems.
Specification
- MODEL
- Casagrande C6XP‑2
- ENGINE
- Cummins QSB4.5 Stage V
- 140 kW
- TRACKS
- 2250 mm x 400 mm
- 129 kNm Traction
- MAST OPTIONS
- 7,300 mm mast with 4,300 mm stroke
- 10,300 mm mast with 7,300 mm stroke
- EXTRACTION / CROWD
- 100 kN / 100 kN
- Super Speed 2V system
- ROTARY HEAD
- Eurodrill RH24X
- 24 kNm torque
- 170 rpm
- TOP HAMMER
- 720 Nm
- 2600 blows/min
- 160–200 bar
- CLAMPS
- M4Z / M4SZ‑C Extracting Clamps
- 70 mm – 361 mm diameter range
- MUD PUMP
- Bellin NG530L
- 170 LPM @ 24 bar
- WINCH
- A2
- 2,000 kg max load
- AUXILIARY WATER PUMP
- High‑pressure water cleaner & lance
- Misting system
- TELEMATICS
- CFM – Casagrande FleetMaster Live
- LUBRICATOR / OILER
- 20 L (DTH)
- SAFETY SYSTEMS
- ROM
- Special ROM
- Hydraulic guards
- Pull ropes
- EN 16228 compliant
- WEIGHT
- 15,000 kg
- OPTIONS
- 3,000 mm mast extension
- Increases stroke from 4,700 mm to 7,300 mm
- Eurodrill RH24X Floating Mandrel
- Type D flange (DTH top‑flushing system)
As part of our continued commitment to supporting the industry, Casagrande UK is investing in a growing hire fleet. Contact us to find out more about the new C6XP-2 and the full range of machines available for hire.
