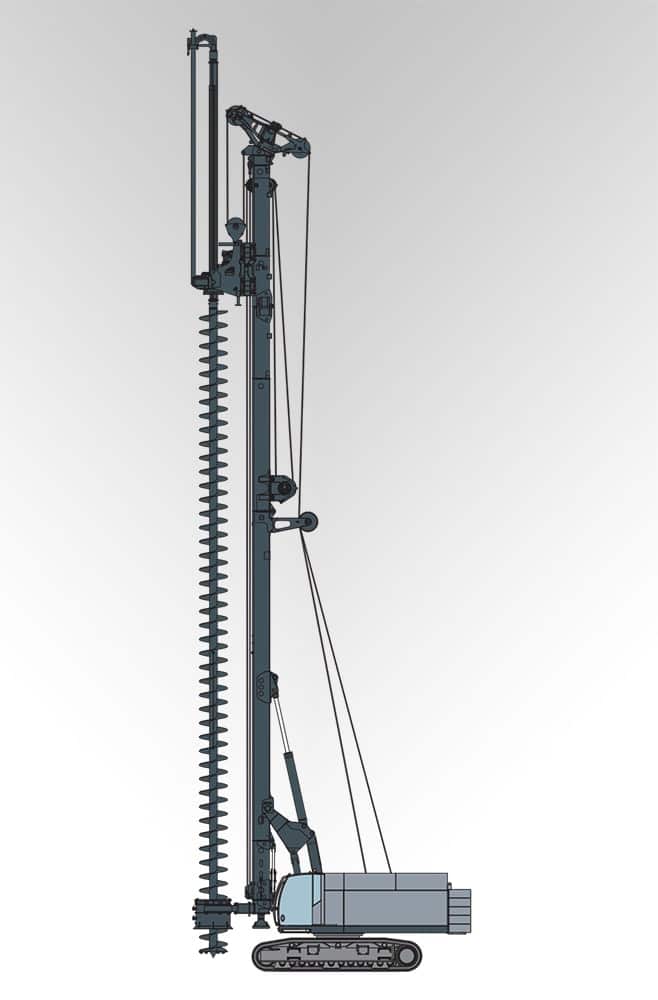

B400 XP-2 CFA

Casagrande B400 XP-2 CFA Piling Rig has high rotary head torque of up to 467 kNm, HD kelly bars and a powerful winch so can rapidly drill deep and large piles in hard soils
  • 450 kW

    Engine Power

  • 1200 kN

    Extraction Force

  • 1200 MM

    CFA Diameter

  • 34 M

    CFA Depth

  • 1000 MM

    Shoes Width

  • 375 kN

    Main Line Pull

  • 150 kN

    Aux Line Pull

  • 110 kN

    Crowd Force

  • 467 kNm

    Rotary Head Torque

  • 50 RPM

    Drilling Speed

  • 128 T

    Operating Weight

  • 3000-5000 MM

    Width Of Crawer

  • 32.9 MM

    Length Of Auger Cleaning Stroke

Contact us
Catalog icon
Product Catalogue B400XP-2-Brochure
download
  • About
  • technical
  • optional

Casagrande’s new series of XP-2 in CFA Configuration hydraulic piling rigs are designed and built using the latest state-of the-art techniques. A range of machines engineered to satisfy the needs of the most demanding contractor with emphasis on performance, reliability and economy.

The Casagrande B400 XP-2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment.

Due to the high torque of the rotary head of up to 467 kNm,the HD kelly bars and a powerful winch, the B400 XP-2 can rapidly drill deep and large piles in hard soils. The crowd winch will drive casings deep into the ground with extreme accuracy having a line pull of 600 kN and rotary head stroke of 21 m.

“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B400 XP-2 is designed to satisfy the strict European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.

PERFORMANCE AND PRODUCTIVITY

The Smart Power Management (SPM) is an intelligent engine power management system that improves performances and productivity of the machinery. The SPM system monitors the momentary power flows and immediately allocates the available power to the different jobs, so the operation function has always the maximum power available.

FULL LOAD SENSING TECHNOLOGY

The XP-2 hydraulic power system uses the Full Load Sensing (FLS) technology. Unlike the common hydraulic
managing systems, the FLS pressurizes only the required amount of oil requested by users thanks to the back-action between pumps and distributors. It allows to manage the power demands and reduces dissipations, achieving up to the 25% of fuel saving (calculated on the basis of a theoretical working cycle).

SAFETY & TECHNOLOGY

The B400 XP-2 has a very low sound emission level as a result of the of sound-absorbing materials and oil heat exchangers, designed for reducing the overall noise level. The layout of the machine and the wide openings of the canopy offer comfortable and easy access for inspection and maintenance. The machine conforms to the last international standards to guarantee the maximum safety of the operations.

FLEXIBILITY

The XP-2 control system offers the following advantages for the operator and the supervision of the work: monitoring of all working function, diagnostic of the working systems to ensure the constant monitoring of the status of sensors and components, easy conversion in any drilling arrangement, friendly customization of working functions e.g. mappings of torque and speed for EP rotary head, remote rigs assistance, diagnostic, monitoring of working parameters.

Technical Data

B400 XP-2 CFA EU USA
Max depth C.F.A. 34 m 112 ft
Max diameter C.F.A. 1200 mm 47 in
Engine power 450 kW 603 HP
Width of crawler 3500÷5000 mm 11.5÷16.4 ft
Shoes width 1000 mm 39 in
MAIN WINCH
Line pull 375 kN 84,300 lbf
AUXILIARY WINCH
Line pull 150 kN 33,720 lbf
CROWD – RAM
Extraction force 400 kN 90,000 lbf
Crowd force 250 kN 56,200 lbf
Stroke 7000 mm 23 ft
CROWD – WINCH
Extraction force 690 kN 155,120 lbf
Crowd force 690 kN 155,120 lbf
Stroke 21000 mm 62 ft
ROTARY HEAD
Torque 467 kNm 344,440 lbf·ft
Drilling speed 50 rpm 50 rpm
WEIGHT
Weight in working condition 124 t 273,400 lbs

Standard Equipment

      • SPM control system – Smart Power Management
      • 12″ touch screen display for visualization and drilling parameter settings
      • Mast lifting and lowering aid
      • Drilling depth measurement and automatic mast verticality control
      • Automatic idling mode with engine start/stop for fuel saving
      • Smart lowering and overload protection for main winch
      • Rotary shaking system for tool discharge
      • Crowd force control for pull down winch and crowd ram
      • CFA feed control
      • Hook on auxiliary line
      • Protective roof guard (FOPS compliant)
      • Air condition system
      • Cab side catwalk
      • Electric refuelling pump

Optional Equipment

BASIC MACHINE

    • Lateral catwalks and handrails
    • Railings on upper structure
    • Water pre-heating system for starting engine at low temperatures
    • Automatic centralized greasing system
    • Cable remote control for tracking
    • Video unit with two cameras and one 7″ monitor to control winches and the rear of the machine
    • Automatic self alignment on drilling axis
    • Casagrande FleetMaster remote rig control and monitoring via internet
    • Transport kit according to required transport configuration

CFA EQUIPMENT

    • Measurement and visualization of extraction force.
    • Rotating CFA cleaner hydraulically operated
    • Star CFA cleaner
    • CFA lower guide with hydraulic opening
    • Crowd winches for CFA. Max crowd force 2 x 55
    • Hydraulic vibrator for cages
    • Instrument for measuring, displaying and recording of drilling parameters. The instrument is complete with software for processing the data on a PC
    • Instrument for continuous extraction of CFA

ROTARY PILING EQUIPMENT

    • Rotary head extension to increase the drilling diameter
    • Low headroom arrangement
    • H47 rotary head
    • Cardanic joint for rotary head
    • Main controlled winch 415 kN nominal line pull
    • Main free fall winch 250 kN nominal line pull
    • Auxiliary free fall winch 140 kN nominal line pull
    • Load cell on auxiliary winch for line pull monitoring
    • Pull control and overload protection for pull-down winch
    • Hydraulic mast folding for transport
    • Hydraulic jib folding for transport
    • Arrangement for casing oscillator
    • Casing oscillator GCL 1500. SE
