DH 32

•

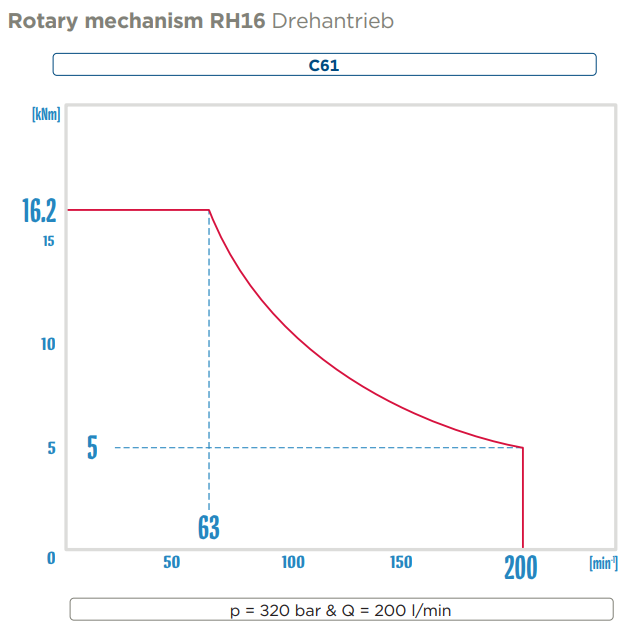

  16.2 KNm

  Torque

•
  825 KG

  Weight

•
  140 RPM

  Rotary Head Max Drilling Speed

•
  170 LPM

  Rotary Hydraulic Flow

•
  280 Bar

  Rotary Hydraulic Pressure

•

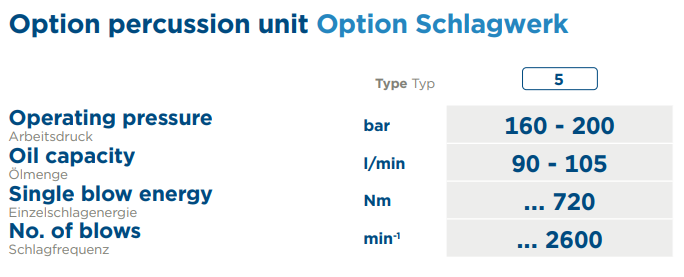

  90 LPM

  Precussive Oil Flow

•
  200 Bar

  Precussive Pressure

•
  70 kNm

  Max Speed Casing Head

•
  32 kNm

  Max Torque Casing Head

•
  170 LPM

  Casing Head Hydraulic Flow

•
  280 Bar

  Casing Head Hydraulic Pressure

•
  650 N

  Precussive/Vibro Force

•
  2300/ BPM/Hz

  Blows/Frequency
