The Hütte HBR 204 is a hydraulic drilling rig for micropiles and ground anchor
  • 18 t


  • 209 kW

    Engine Power

  • 150 kN

    Extraction Force

  • 150 kN

    Crowd Force

  • 55000 Nm

    Rotary Head Torque

  • 18000 KG


  • 8500

    Stroke of Rotary

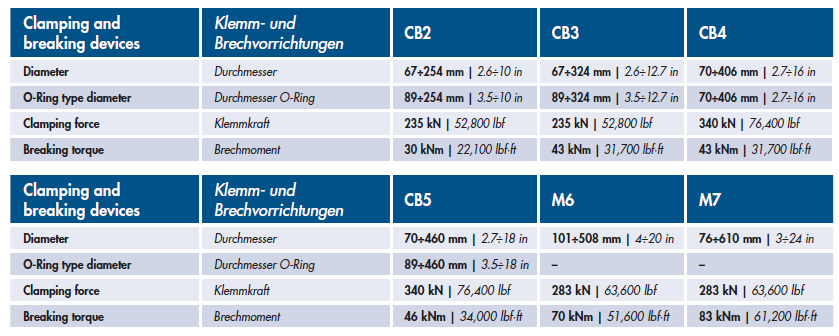

  • 324-880

    Clamp Diameters

  • 55 RPM

    Rotary Head Max Drilling Speed

  • 18 T

    Operating Weight

  • about
  • technical

Hütte HBR 204 is a hydraulic drilling rig for micropiles and ground anchor. It is also particularly suited for soil drilling and soil investigation, slope stabilization and geotechnical drilling.
The drill rig for micropiles was developed from the original design of the HBR 205 to ensure Hütte costumers high efficiency and productivity levels on site in a smaller and lighter package. The HBR 204 has a high maximum rotary head torque combined with a powerful crowd and extraction force; the drilling mast and the rotary head stroke of the HBR 204 were engineered to carry as much auger as possible.
The drilling rig incorporates the latest diesel technology, meeting the strict emissions regulations in all the markets. The smart power management and the full load sensing hydraulic system allows an intelligent engine power management to improve performance of the machinery and reduce fuel consumption.
Available in hydraulic and full radio-controlled version, the Hütte HBR 204 can be tailored to any costumer need or geological conditions: a wide range of rotary heads and drilling tools are available to extend the applications of Hütte drilling equipment.

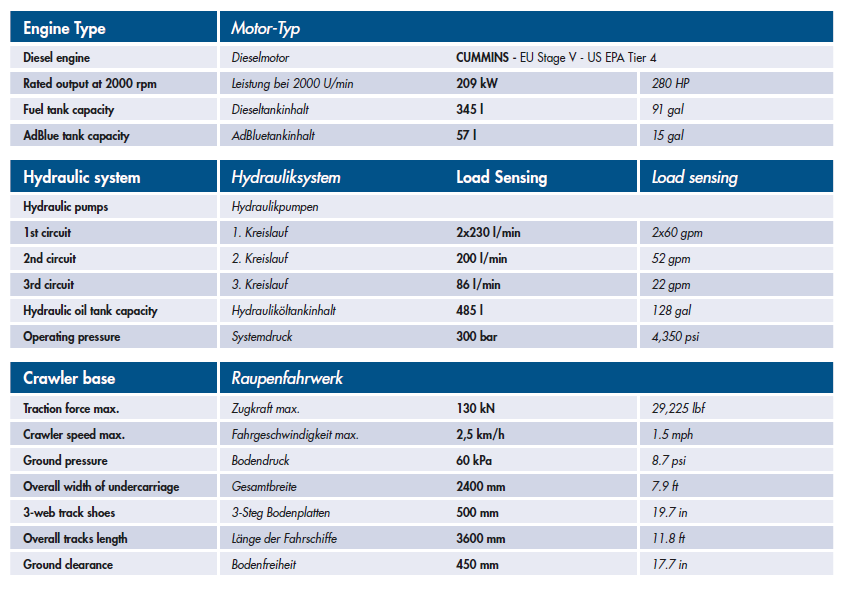

Engine power 209 kW 280 HP

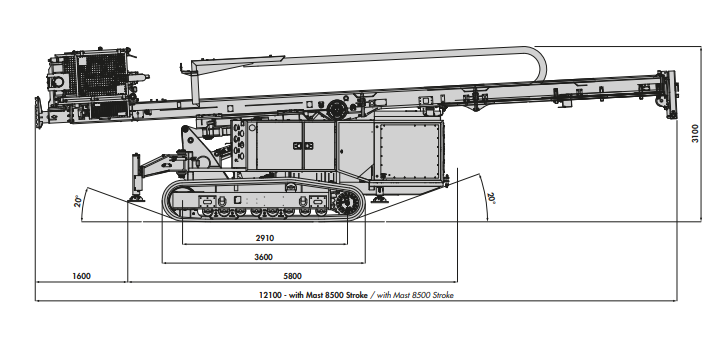

Width of crawler 2400 mm 7.9 ft

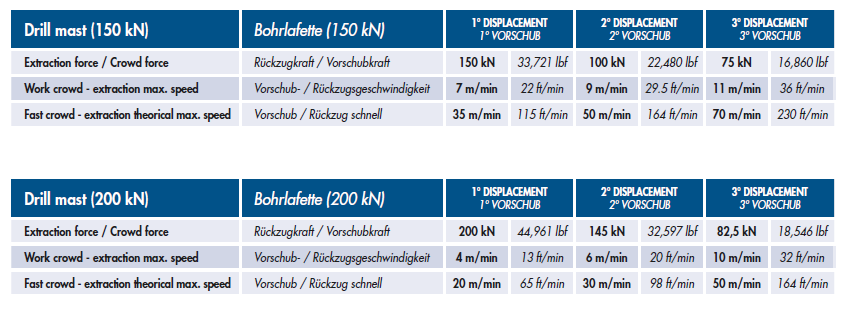

Extraction force 150 kN 33,700 lbf
Crowd force 150 kN 33,700 lbf
Working extraction speed 7 m/min 22 ft/min
Fast extraction speed 35 m/min 115 ft/min
Diameters 194÷660 | 324÷880 mm 6.3÷26 | 12.7÷35 in
Weight in working condition 18000 kg 39,500 lbs
