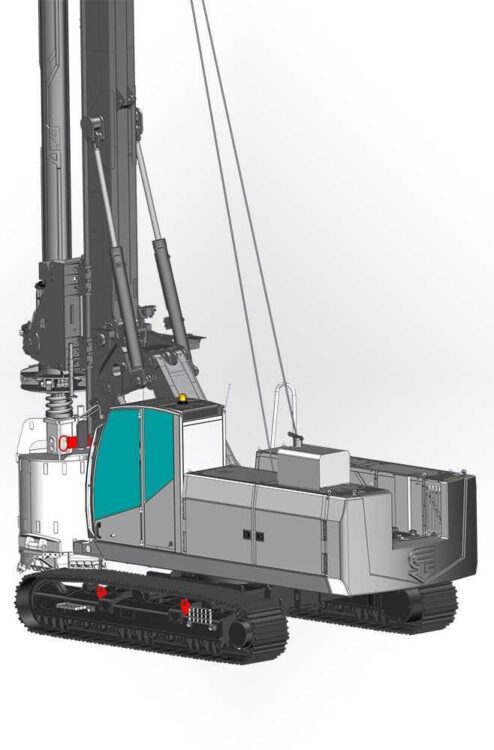

The Casagrande C40 CFA is a Casagrande classic series hydraulic piling rig dedicated to CFA foundation construction, small - medium diameters
  • 201 kW

    Engine Power

  • 177 KNm


  • 560 kN

    Extraction Force

  • 32 RPM

    Rotary Head Speed

  • 800 MM

    CFA Diameter

  • 23.6 M

    CFA Depth

  • 106 kN

    Crowd Force

  • 41 T

    Operating Weight

Catalog icon
Product Catalogue C40
  • about
  • technical
  • options

Casagrande’s new series of Classic Series hydraulic piling rigs are designed to give the contractor efficiency with an emphasis on performance, reliability and economy.

The Casagrande C40 Classic Rig, designed from the tradition to give the specialist contractors an equipment performing foundation techniques in the geotechnical engineering for bored piles and continuous flight auger. Designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.
Comfortable cabin and simplified interface keeps the operator efficient and ready for high productivity.
The hydraulic circuit and the controls of the machine are based on traditional electro-hydraulic logic elements in order to be as easy as possible.

The Smart Power Management (SPM) is an engine power management system that improves performances and productivity of the machinery. SPM monitors the power flows drawn from the engine and allocates the maximum available power to the required function.

The operator cabin is ergonomically designed for user comfort and soundproofing. Smart oil heat exchangers reduce fuel consumption and the overall noise level of the cooling system.
Hydraulic lifting canopy over the engine for easy access during inspections and maintenance. Optional stairs, platforms and railings provide safe accessibility to every point. Also, optional cameras and display for full visibility of the working area.
Rigs are powered by the latest generation Stage V diesel engine with reduced exhaust emissions and use of low sulfuric content fuels. Further reduction of CO2 emissions is achievable by using HVO plant-based fuels. Bio-oils of high efficiency and performance are available.

Technical Data

C40 Piling Rig EU USA
Max depth 50 m 164 ft
Max diameter 1500 mm 59 in
Max depth C.F.A. 23,6 m 77.4 ft
Max diameter C.F.A. 800 mm 31 in
Engine power 201 kW 269 HP
Width of crawler 2500÷3700 mm 8.2÷12.1 ft
Shoes width 600 mm 24 in
Line pull 165 kN 37,100 lbf
Line pull 73 kN 16,100 lbf
Extraction force 205 kN 46,100 lbf
Crowd force 190 kN 42,700  lbf
Stroke 3800 mm 12,5 ft
Torque 177 kNm 130,550 lbf·ft
Drilling speed 32 rpm 32 rpm
Weight in working condition 41800 Kg 92,150 lbs

Standard Equipment

  • 7” screen display for visualization and setting of drilling parameters
  • Drilling depth measurement and automatic mast verticality controlled
  • Protective roof guard (FOPS compliant)
  • Air condition system
  • Cab side catwalk
  • Electric refuelling pump


    • Track shoes width 800 mm
    • Lateral catwalks and handrails
    • Cab front board
    • Water pre-heating system for starting engine at low temperatures
    • Automatic centralized greasing system
    • Video unit with two cameras and one 7” monitor to control winches and the rear of the machine
    • Casagrande FleetMaster remote rig control and monitoring via internet
    • Transport kit according to required transport configuration


    • Cardanic joint for rotary head
    • Hook on auxiliary line



    • Rotating CFA cleaner hydraulically operated
    • Star CFA cleaner
    • CFA lower guide with hydraulic opening
    • Crowd winches for CFA. Max crowd force 2×29 kN
    • Hydraulic vibrator for cages
    • Instrument for measuring, displaying and recording of drilling parameters.
    • Complete with software for processing data on a PC
    • Instrument for continuous extraction of CFA
