VDW 6035
Discover the Eurodrill VDW6035 rotary head—engineered for high-performance pile rig drilling. With up to 83 kNm torque, hydraulic or electric shifting, and advanced gearbox configurations, it's built for precision and durability in demanding drilling environments.-
450 kNExtraction Force
-
62 kNmRotary Head Torque
-
3400 KGWeight
-
66 RPMRotary Head Max Drilling Speed
-
400 LPM
Rotary Hydraulic Flow
-
320 Bar
Rotary Hydraulic Pressure
-
83 kNm
Max Speed Casing Head
-
62 kNm
Max Torque Casing Head
-
400 LPM
Casing Head Hydraulic Flow
-
320 Bar
Casing Head Hydraulic Pressure

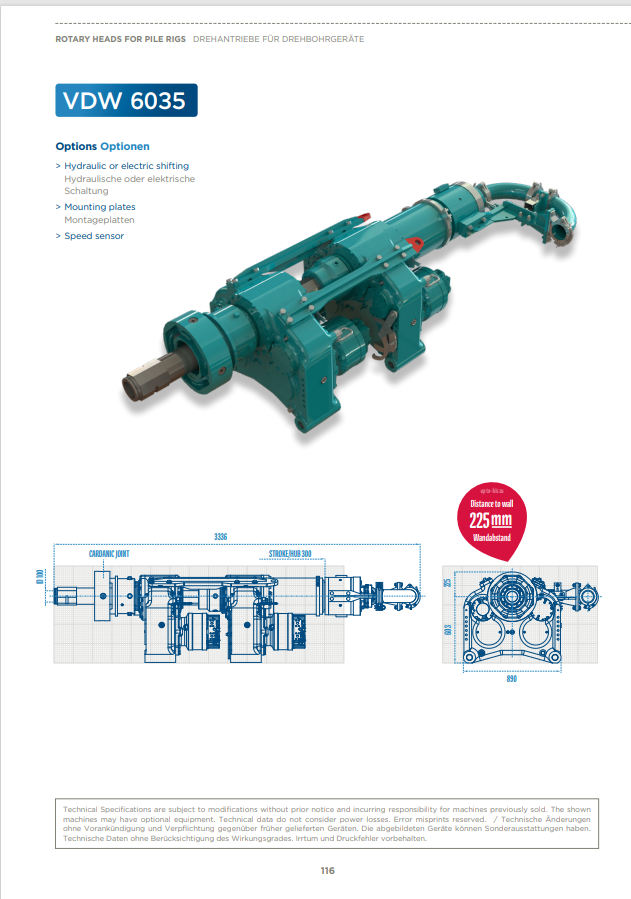

Product Catalogue
VDW6035
- Specification
