RH 6 X

Eurodrill RH6X Multi Purpose Rotary Head
  • 6 KNm


  • 305 KG


  • 750 RPM

    Rotary Head Max Drilling Speed

  • 100 LPM

    Rotary Hydraulic Flow

  • 250 Bar

    Rotary Hydraulic Pressure

  • 320 N

    Precussive Force

  • 2500 BPM


  • 55 LPM

    Precussive Oil Flow

  • 200 Bar

    Precussive Pressure

Catalog icon
Product Catalogue RH_6_X

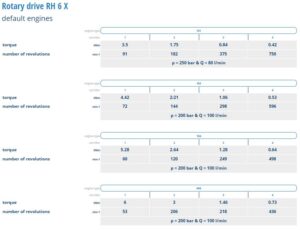

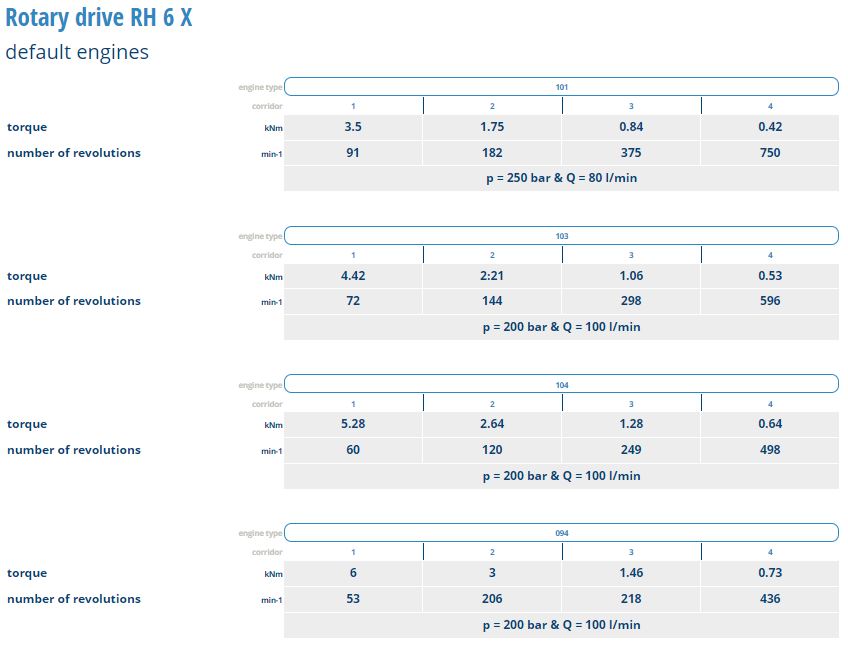

  • Specification


The EURODRILL X-Series stands for highest flexibility and efficiency. Due to the possibility of a simple conversion of a rotary head to a drifter and vice versa, you get a multi-functional drill drive for all common drilling methods.

Maximum flexibility and minimization of investment costs by easy interchangeability of the individual components. Modular and compact design for low space requirements and high economic claim.   Option – Adaptation kits percussion: Wear-free damping system to retract the drilling tools under most severe conditions.  Optimal supply of mechanical components and bearings by separate oil and grease lubrication.  Compatible to drill rigs of all manufacturers for different applications and requirements

A rotary drive consists of two components:

Rotary Box

The rotary mechanism ensures the rotational movement and can also be reversed in its direction.

Adaptation kits

Due to the interchangeability of different adaptation kits, rotary heads of the X-Series can be converted very fast and cost-effective for different applications.

Rotary kit

Kit applied to use the rotary head and as a conventional top flush system with ridged drive shaft.

Floating spindle kit –  for use with down-the-hole hammer

Kit applied to use the rotary head and as a conventional top flush system with floating drive shaft for thread saver.

Hydraulic drifter kit –  for percussion drilling applications

Kit applied to use the rotary head with optional  top hammer system complete with shank, drive sleeve and damping mechanism.
