HBR202 D/E

Hutte HBR202 D/E confined access and low headroom crawler drill
  • 65 kW

    Engine Power

  • 62 kN

    Extraction Force

  • 38 kN

    Crowd Force

  • 7.2-8.2 T

    Operating Weight

  • 55 kW

    Optional Electric Power

Catalog icon
Product Catalogue Hutte HBR202 D/E
download
  • Hutte HBR202 D/E

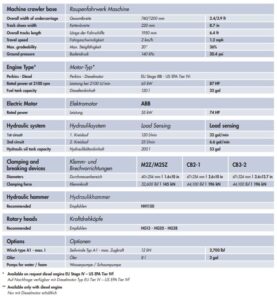

  • Specification

INTRODUCTION

Hutte Bohrtechnik’ s compact class drill rigs HBR 202, with integrated electric motor or diesel engine, was designed to fulfil clients’ need for small drill rigs for large-diameter bores. The drilling rig is especially suited for difficult drilling conditions in confined and limited areas, which require particularly compact and mobile equipment. It features a design with specific mast movements to reach drilling positions for special applications . At the same time the HBR 202 is able to drill big diameters , for example up to 324 mm and 406 mm.

The compact-class Hütte drill rig HBR 202 D/E is self-contained, fully hydraulic crawler drill rig, which feature a compact and robust design, simple controls, as well as high efficiency. It incorporates the latest diesel technology, meeting the strict emissions regulations in the EU and the US. Furthermore the rig is fully radio-controlled which makes operations from various positions possible and offers control over the drill rig according to the latest safety requirements.

The drill rigs are equipped with telescopic undercarriages as well as a telescopic drill mast. Together with the powerful rotary head type HG28, which is a very compact and powerful rotary head, the Hütte rig HBR 202 is suitable for big-diameter surface drilling jobs, which require high torques.

POWERFUL POWER PACK

Robust and electronic engine management have been: they guarantee fast drilling progress and precise drilling results.

  • Highest performance even under continuously extreme conditions
  • Low operational costs through low fuel consumption and long maintenance intervals
  • Worldwide maintenance service

CLAMPS

Hütte CLAMPS are designed to be robust and powerful. They are built for heavy duty drilling work.

ROTARY HEAD

Huette rotary heads are designed to be robust and powerful. They are built for heavy duty drilling work. A variety of  rotary heads in different output ranges is available for different applications.

  • Wide range of torque
  • Flexibility: can be mounted to any leader of suitable strength
  • Available for a wide range of drilling works
  • Very robust and extremely reliable
  • Variable speed and torque

MAST

The HBR202 D/E has heavy duty modular mast , designed to offer the best drilling experience:

  • high extraction and crowd force
  • best-performing speed.
  • Different settings according to the requirement of the job site or of the operator’s requests are available.

CRAWLER

Hütte machines with crawler undercarriages show their advantages on inadequately paved and yielding surfaces.Powerful crawler machines built by Hütte can handle extremely heavy loads in swift maneuvers: they guarantee high stability on every surface.
