RH 2 XEurodrill RH2X Multi Purpose Rotary Head

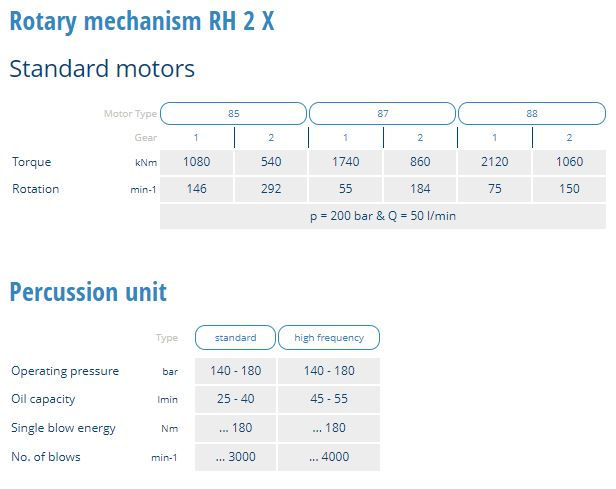

Rotary Head Max Drilling Speed
Rotary Hydraulic Flow
Rotary Hydraulic Pressure
Precussive Oil Flow
Eurodrill RH2X Multi Purpose Rotary Head
The EURODRILL X-Series stands for highest flexibility and efficiency. Due to the possibility of a simple conversion of a rotary head to a drifter and vice versa, you get a multi-functional drill drive for all common drilling methods.
Maximum flexibility and minimization of investment costs by easy interchangeability of the individual components. Modular and compact design for low space requirements and high economic claim. Option – Adaptation kits percussion: Wear-free damping system to retract the drilling tools under most severe conditions. Optimal supply of mechanical components and bearings by separate oil and grease lubrication. Compatible to drill rigs of all manufacturers for different applications and requirements
A rotary drive consists of two components:
The rotary mechanism ensures the rotational movement and can also be reversed in its direction.
Due to the interchangeability of different adaptation kits, rotary heads of the X-Series can be converted very fast and cost-effective for different applications.
Kit applied to use the rotary head and as a conventional top flush system with ridged drive shaft.
Floating spindle kit – for use with down-the-hole hammer
Kit applied to use the rotary head and as a conventional top flush system with floating drive shaft for thread saver.
Hydraulic drifter kit – for percussion drilling applications
Kit applied to use the rotary head with optional top hammer system complete with shank, drive sleeve and damping mechanism.
