B275 XP-2 CFA

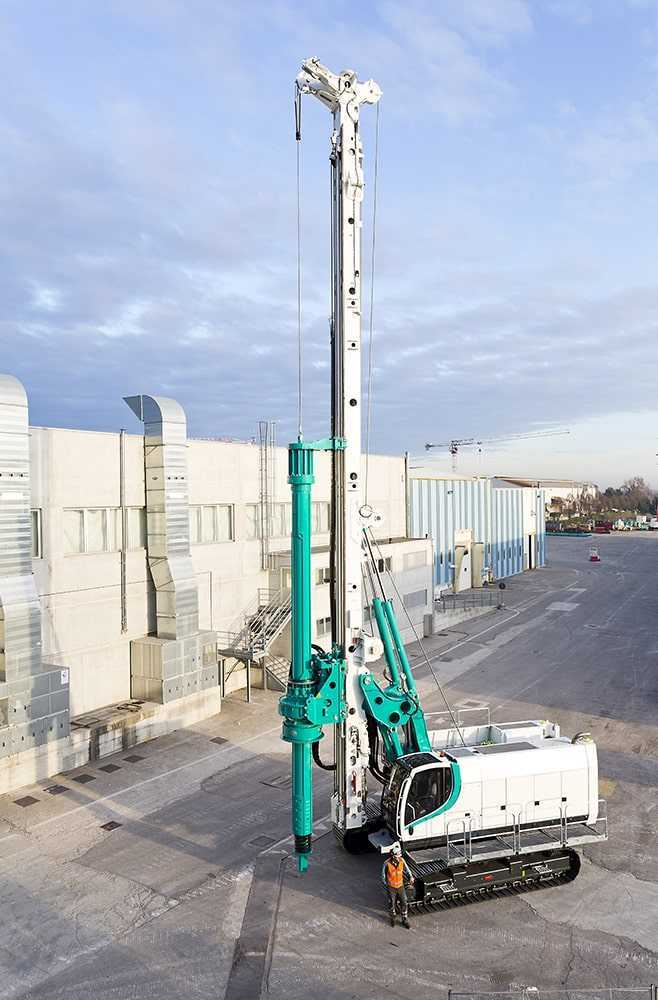

The Casagrande B275 XP-2 CFA is a multifunctional hydraulic piling rig for foundation construction utilising modern power systems and PLC machine controls
  • 336 kW

    Engine Power

  • 1125 kN

    Extraction Force

  • 1200 MM

    CFA Diameter

  • 30 M

    CFA Depth

  • 900 MM

    Shoes Width

  • 280 kN

    Main Line Pull

  • 100 kN

    Aux Line Pull

  • 136 kN

    Crowd Force

  • 300 kNm

    Rotary Head Torque

  • 29 RPM

    Drilling Speed

  • 94 T

    Operating Weight

  • 3000-4500 MM

    Width Of Crawer

  • 29.6 MM

    Length Of Auger Cleaning Stroke

Catalog icon
Product Catalogue B275XP-2-Casagrande-brochure
download
  • about
  • technical
  • options

Casagrande’s new series of XP2 hydraulic piling rigs is designed and built using the latest state-of the-art techniques. A range of machines engineered to satisfy the needs of the most demanding contractor with particular emphasis being put on performance, reliability and economy

The Casagrande B275 XP2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a of casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment

Designed to work on the most difficult sites and has excellent technical characteristics: 270 kN high speed winches for fast work, the new H30 rotary head has a maximum torque output of 300 kNm and speed up to 29 rpm, it is ideal for drilling large and small diameter boreholes and for driving long casings.

“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B275XP2 is designed to satisfy the severe European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.

PERFORMANCE AND PRODUCTIVITY

The Smart Power Management (SPM) is an intelligent engine power management system that improves performances and productivity of the machinery. The SPM system monitors the momentary power flows and immediately allocates the available power to the different jobs, so the operation function has always the maximum power available.

SAFETY & TECHNOLOGY

The B275 XP-2 has a very low sound emission level as a result of the of sound-absorbing materials and oil heat exchangers, designed for reducing the overall noise level. The layout of the machine and the wide openings of the canopy offer comfortable and easy access for inspection and maintenance. The machine conforms to the last international standards to guarantee the maximum safety of the operations.

FULL LOAD SENSING TECHNOLOGY

The XP hydraulic power system uses the Full Load Sensing (FLS) technology. Unlike the common hydraulic
managing systems, the FLS pressurizes only the required amount of oil requested by users thanks to the back-action between pumps and distributors. It allows to manage the power demands and reduces dissipations, achieving up to the 25% of fuel saving (calculated on the basis of a theoretical working cycle).

FLEXIBILITY

The XP control system offers the following advantages for the operator and the supervision of the work: monitoring of all working function, diagnostic of the working systems to ensure the constant monitoring of the status of sensors and components, easy conversion in any drilling arrangement, friendly customization of working functions e.g. mappings of torque and speed for EP rotary head, remote rigs assistance, diagnostic, monitoring of working parameters.

Technical Data

B275 XP-2 CFA EU USA
Max depth C.F.A. 29 m 95 ft
Max diameter C.F.A. 1200 mm 47,2 in
Engine power 336 kW 451 HP
Width of crawler 3000÷4500 mm 8.2÷12.1 ft
Shoes width 900 mm 35,4 in
MAIN WINCH
Line pull 280 kN 62,950 lbf
AUXILIARY WINCH
Line pull 100 kN 22,480 lbf
CROWD – RAM
Extraction force 350 kN 78,920 lbf
Crowd force 220 kN 74,200 lbf
Stroke 6500 mm 49,2 ft
CROWD – WINCH
Extraction force 420 kN 94,420 lbf
Crowd force 420 kN 94,420 lbf
Stroke 16000 mm 52,5 ft
ROTARY HEAD
Torque 300 kNm 221,270 lbf·ft
Drilling speed 29 rpm 29 rpm
WEIGHT
Weight in working condition 90 t 198,400 lbs

Standard Equipment

      • SPM control system – Smart Power Management
      • 12″ touch screen display for visualization and drilling parameter settings
      • Mast lifting and lowering aid
      • Drilling depth measurement and automatic mast verticality control
      • Automatic idling mode with engine start/stop for fuel saving
      • Rotary shaking system for tool discharge
      • Hook on auxiliary line
      • Protective roof guard (FOPS compliant)
      • Air condition system
      • Cab side catwalk
      • Electric refueling pump

Optional Equipment

BASIC MACHINE

    • Railings on upper structure
    • Lateral catwalks and handrails
    • Water pre-heating system for starting engine at low temperatures
    • Automatic centralized greasing system
    • Cable remote control for tracking
    • Video unit with two cameras and one 7″ monitor to control winches and the rear of the machine
    • Automatic self-alignment on drilling
    • Casagrande FleetMaster remote rig control and monitoring via internet
    • Hydraulic self lifting conterweight
    • Transport kit according to required transport configuration

ROTARY PILING EQUIPMENT

    • 2 meters mast extension for extended mast version
    • Low headroom arrangement
    • Cardanic joint for rotary head
    • Main controlled winch 320 kN nominal line pull
    • Main free fall winch 250 kN nominal line pull
    • Auxiliary free fall winch 140 kN nominal line pull
    • Pull control for pull-down winch
    • Arrangement for casing oscillator
    • Casing oscillator GCL 1500 SE

CFA EQUIPMENT

    • Measurement and visualization of extraction force
    • Rotating CFA cleaner hydraulically operated
    • Star CFA cleaner
    • CFA lower guide with hydraulic opening
    • Crowd winches for CFA. Max crowd force 2 x 55
    • Hydraulic vibrator for cages
    • CFA feed control
    • Instrument for measuring, displaying and recording of drilling parameters. The instrument is complete with software for processing the data on a PC
    • Instrument for continuous extraction of CFA
