B360 XP-2 CFA

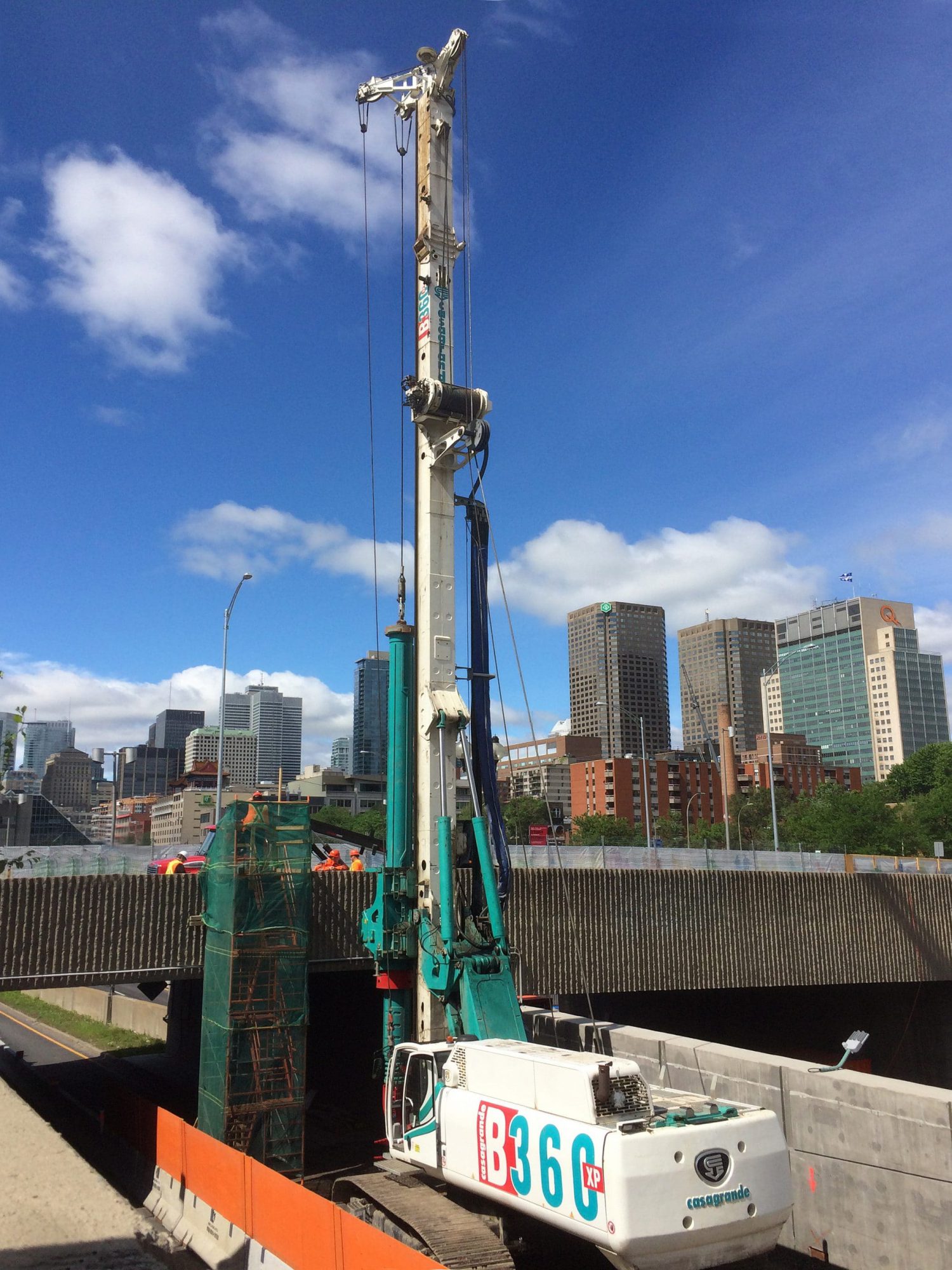

The Casagrande B360 XP-2 CFA is the largest Casagrande hydraulic piling rig dedicated to CFA foundation construction, medium - large diameters
  • 400 kW

    Engine Power

  • 1200 MM

    CFA Diameter

  • 400 kNm

    Rotary Head Torque

  • 116 T

    Operating Weight

Catalog icon
Product Catalogue B360XP-2
download
  • about
  • technical
  • optional

The Casagrande B360 XP-2 is a machine dedicated to give the specialist contractor an equipment to perform large diameter rotary piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the field of foundations and geotechnical engineering.

Thanks to the high torque of the rotary head up to 400 kNm, to the HD kelly bars and a powerful winch, the B360 XP-2 is able to drill quickly deep and large piles in hard soils. The crowd winch with a line pull of 600 kN and the stroke of the rotary head of 21 m.

The SPM (Smart Power Management) allows an intelligent engine power management to improve performances and productivity of machinery. The XP technology monitors the istantaneus power fl ows and allocates the full available power to the job duties. The results is an increasing of the machine effi ciency.

The design guidelines have taken particular care in the welfare of the operator and its high level of professional performance. In particular, best results were obtained in terms of ergonomics, both in the cabin and outside of the machine, and with regards to noise reduction.

PERFORMANCE AND PRODUCTIVITY

The Smart Power Management (SPM) is an intelligent engine power management system that improves performances and productivity of the machinery. The SPM system monitors the momentary power flows and immediately allocates the available power to the different jobs, so the operation function has always the maximum power available.

SAFETY & TECHNOLOGY

The B360 XP-2 has a very low sound emission level as a result of the of sound-absorbing materials and oil heat exchangers, designed for reducing the overall noise level. The layout of the machine and the wide openings of the canopy offer comfortable and easy access for inspection and maintenance. The machine conforms to the last international standards to guarantee the maximum safety of the operations.

FULL LOAD SENSING TECHNOLOGY

The XP-2 hydraulic power system uses the Full Load Sensing (FLS) technology. Unlike the common hydraulic
managing systems, the FLS pressurizes only the required amount of oil requested by users thanks to the back-action between pumps and distributors. It allows to manage the power demands and reduces dissipations, achieving up to the 25% of fuel saving (calculated on the basis of a theoretical working cycle).

FLEXIBILITY

The XP-2 control system offers the following advantages for the operator and the supervision of the work: monitoring of all working function, diagnostic of the working systems to ensure the constant monitoring of the status of sensors and components, easy conversion in any drilling arrangement, friendly customization of working functions e.g. mappings of torque and speed for EP rotary head, remote rigs assistance, diagnostic, monitoring of working parameters.

Technical Data

Max depth C.F.A. 34 m
Max diameter C.F.A. 1200 mm
Engine power 400 kW
Width of crawler 3000÷5000 mm
Shoes width 1000 mm

WINCHES

MAIN WINCH
Line pull 375 kN
AUXILIARY WINCH
Line pull 150 kN
CROWD – RAM
Extraction force 400 kN
Crowd force 250 kN
Stroke 7000 mm
CROWD – WINCH
Extraction force 690 kN
Crowd force 690 kN
Stroke 21000 mm

ROTARY HEAD

Torque 400 kNm
Drilling speed 25 rpm

WEIGHT

Weight in working condition 125 t

Standard Equipment

  • SPM control system – Smart Power Management
  • 12″ touch screen display for visualization and drilling parameter settings
  • Mast lifting and lowering aid
    Drilling depth measurement and automatic mast verticality control
  • Automatic idling mode with engine start/stop for fuel saving
    Smart lowering and overload protection for main winch
  • Rotary shaking system for tool discharge
    Hook on auxiliary line
  • Protective roof guard (FOPS compliant)
  • Air condition system
  • Cab side catwalk
    Electric refuelling pump
  • Hydraulic self lifting counterweight

BASIC MACHINE

  • Railings on upper-structure
  • Water pre-heating system for starting engine at low temperatures
  • Automatic centralized greasing system
  • Cable remote control for tracking
  • Video unit with two cameras and one 7″ monitor to control winches and the rear of the machine
  • Automatic self alignment on drilling axis
  • Casagrande FleetMaster remote rig control and monitoring via internet
  • Transport kit according to required transport configuration

CFA EQUIPMENT

  • HD mast support and reinforced mast elements for special arrangements
  • Measurement and visualization of extraction force.
  • Rotating CFA cleaner hydraulically operated
  • Star CFA cleaner
  • CFA lower guide with hydraulic opening
  • Crowd winches for CFA. Max crowd force 2 x 55
  • Hydraulic vibrator for cages
  • Instrument for measuring, displaying and recording of drilling parameters. The instrument is complete with software for processing the data on a PC
  • Instrument for continuous extraction of CFA

ROTARY PILING EQUIPMENT

  • Rotary head extension to increase the drilling diameter
  • Low headroom arrangement
  • H47 rotary head
  • Cardanic joint for rotary head
  • Main controlled winch 415 kN nominal line pull
  • Main free fall winch 250 kN nominal line pull
  • Auxiliary free fall winch 140 kN nominal line pull
  • Load cell on auxiliary winch for line pull monitoring
  • Pull control and overload protection for pull-down winch
  • Hydraulic mast folding for transport
  • Hydraulic jib folding for transport
  • Arrangement for casing oscillator
  • Casing oscillator GCL 2000. SE
