CF2.5 – LDP
The Tescar CF2.5 advanced compact rotary drilling rig is an extremely small large diameter piling rig that is compact and powerful-
8 tWeight
-
35 kWEngine Power
-
25 KNmTorque
-
27 kNExtraction Force
-
60 RPMRotary Head Speed
-
1000 MMRotary Diameter
-
15 MRotary Depth
-
27 kNMain Line Pull
-
9 kN
Aux Line Pull
-
700 MM
Stroke Force
The Tescar CF2.5 advanced compact rotary drilling rig is an extremely small large diameter piling rig that is compact and powerful
Product Catalogue

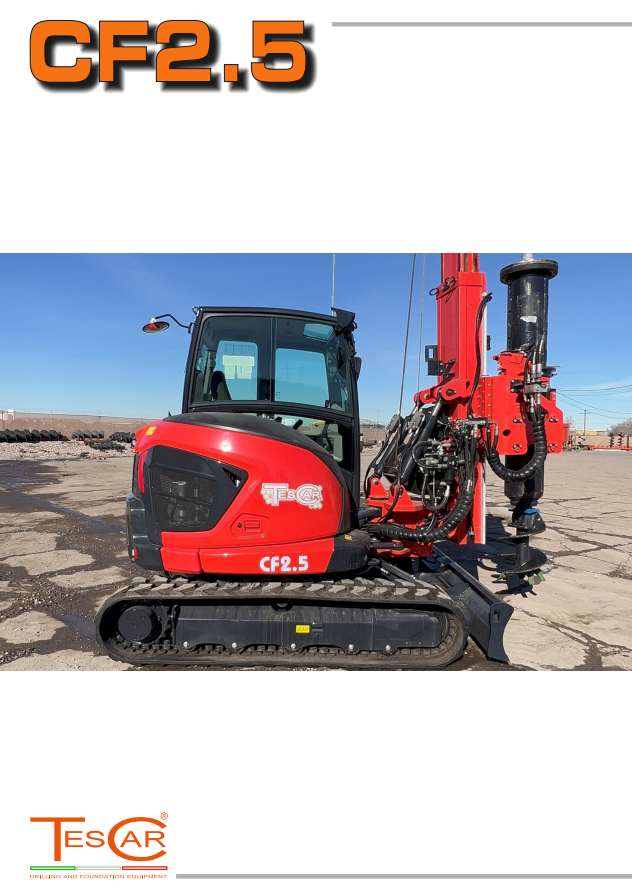

CF2-5 Brochure
- Specification
| Base Carrier | ||
| Engine Make | Kubota KX060-5 | |
| Diesel engine models | Kubota V2607-CR-E5 | |
| Rated power at 2500 rpm | 35,0 | kW |
| Fuel tank capacity | 73,0 | ltrs |
| Hydraulic oil tank capacity | 42,0 | ltrs |
| Undercarriage | ||
| Track width | 1960 | mm |
| Track length | 2500 | mm |
| Shoe width | 400 | mm |
| Max. travel speed | 4,2 | Km/h |
| Swing speed | 9 | rpm |
| Hydraulic pumps | ||
| Main pump flow | 112,2 | I/min |
| Auxiliary pump flow | 37 | l/min |
| Max working pressure | 28 | MPa |
| Hydraulic winches | ||
| Main winch line pull | 2700 | daN |
| Service winch line pull | 900 | daN |
| Hydraulic rotary head | ||
| Torque | 2500 | daNm |
| Rotation speeds | Â 5 – 60 | rpm |
| Spin-off speed | 60 | rpm |
| Stroke | 700 | mm |
| Max. extraction force | 6400 | daN |
| Max. crowd force | 9500 | daN |
| Drilling dimensions | ||
| Max. diameter | 1000 | mm |
| Min. diameter (*) | 350 | mm |
| Max. Depth | 15 | m |
| (*) 11,8 in blocking the 1st outer bar | ||
| Transport dimensions | ||
| Height | 2800 | mm |
| Length | 4500 | mm |
| Width | 1960 | mm |
| Weight (with15 m kelly bar) | 8000 | kq |
| Safety system | ||
| Travel Buzzer | ||
| Fire extinguisher | ||
| Spirit level on the mast | ||
| Spirit level in the cab | ||
| Limit switch system | ||
| Operator safety lever | ||
