COMPACT
Tescar COMPACT radio remote control confined access low headroom LDP piling rig-
8.2 tWeight
-
55.4 kWEngine Power
-
40 KNmTorque
-
60 RPMRotary Head Speed
-
22 MRotary Depth
-
30 kNMain Line Pull
-
10 kN
Aux Line Pull
-
700 MM
Stroke Force
Tescar COMPACT radio remote control confined access low headroom LDP piling rig
- Equipment

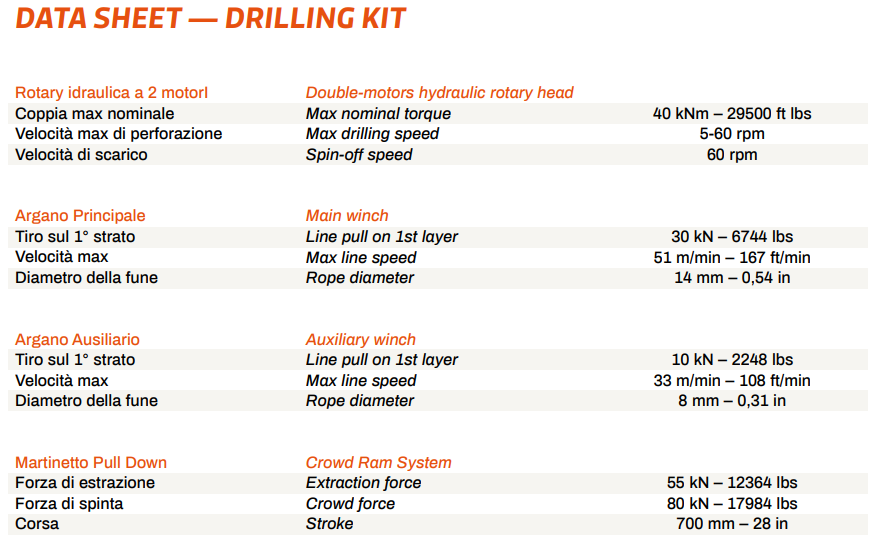

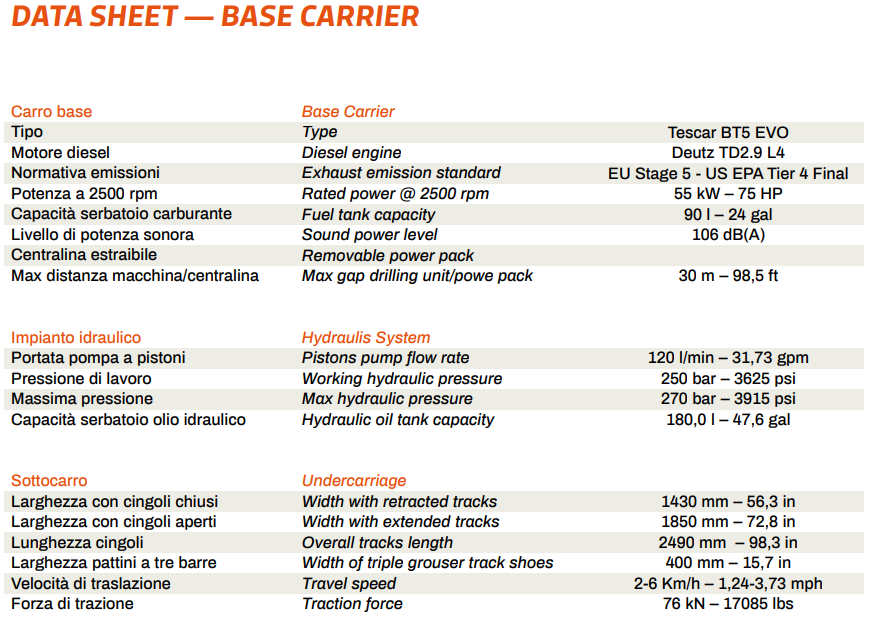

- Technical Data

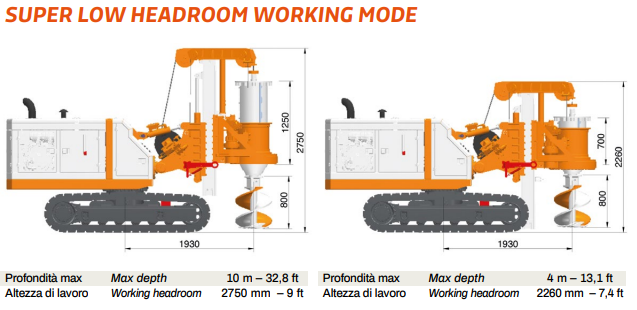

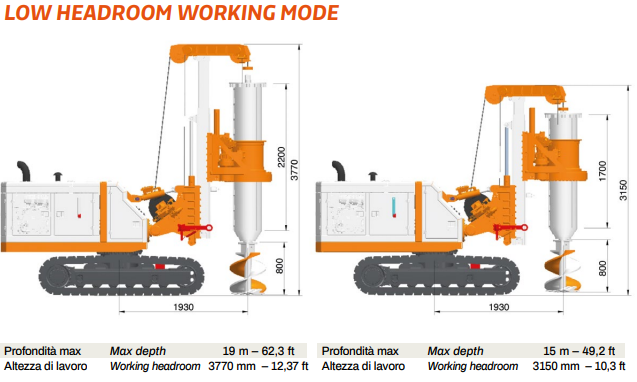

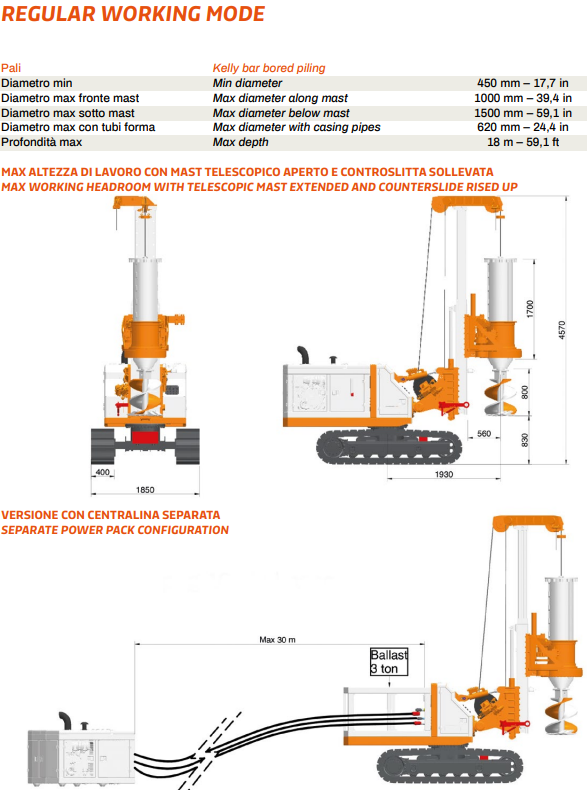

- Drilling Modes
Standard Equipment
EU Stage 5 / US EPA Tier 4 Final compliant
diesel engine
Depth measurement device with onboard screen
Mast alignment control with onboard screen
Automatic control of rotary motors displacement
Rotary knockback system for quick tool discharge
Main and auxiliary winch controlled descent type
Hoist limit switch on main rope
Quick-release hydraulic couplers
Swivel head on main rope
Aux rope hooking point
Variable gauge undercarriage
Transport security lugs on crawler units
On board lighting set
On board tool box
Radio remote control device
onboard compartment for the radio remote storage
Mast counter-slide device
Digital screen for engine parameters control
Removable power-pack
Emergency stop button onboard
Emergency stop button on the radio remote controller
Optional Equipment
Counterweight to replace the power-pack
Rotary flange for casing pipes driving
Cardonic joint for rotary
Hydraulic hoses to connect the machine to the power-pack
Rear outriggers
