DHV32

The Eurodrill DHV32 rotary head offers powerful and precise drilling performance with advanced double-head technology. Ideal for demanding geotechnical applications, it combines high torque capacity with compact design and reliable operation in challenging environments.
  • 12 KNm

    Torque

  • 160 kN

    Extraction Force

  • 190 RPM

    Rotary Head Speed

  • 1830 KG

    Weight

  • 200 LPM

    Rotary Hydraulic Flow

  • 320 Bar

    Rotary Hydraulic Pressure

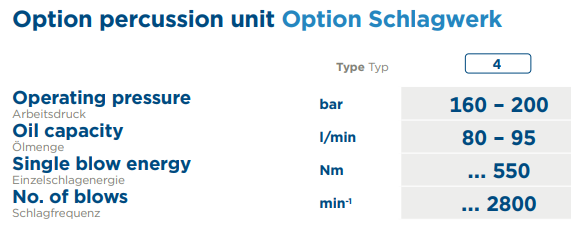

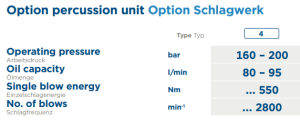

  • 550 N

    Precussive Force

  • 80 - 95 LPM

    Precussive Oil Flow

  • 160 - 200 Bar

    Precussive Pressure

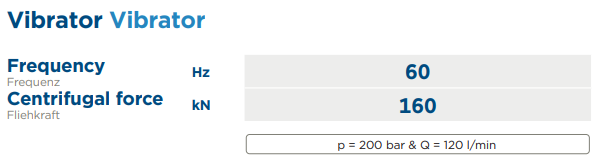

  • 160 (kN)/(kW)

    Vibratory Force

  • 60 Hz

    Frequency

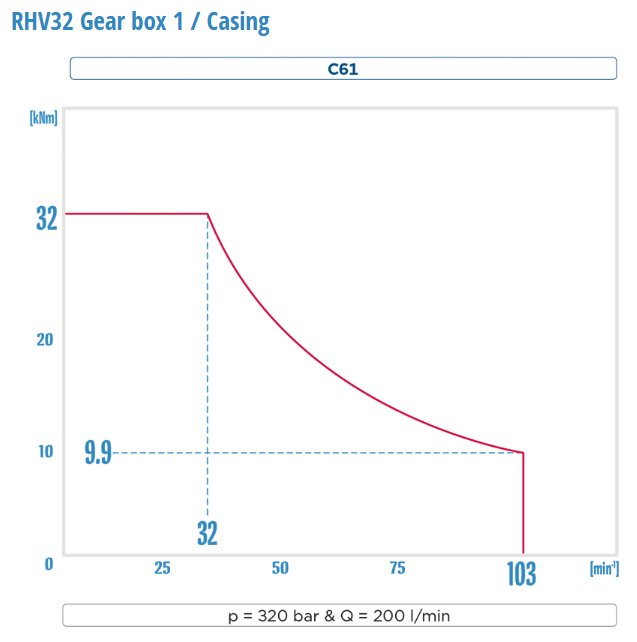

  • 103 kNm

    Max Speed Casing Head

  • 32 kNm

    Max Torque Casing Head

  • 170 LPM

    Casing Head Hydraulic Flow

  • 280 Bar

    Casing Head Hydraulic Pressure

Contact us
Catalog icon
Product Catalogue DHV_32
download
