TT3 – LDP

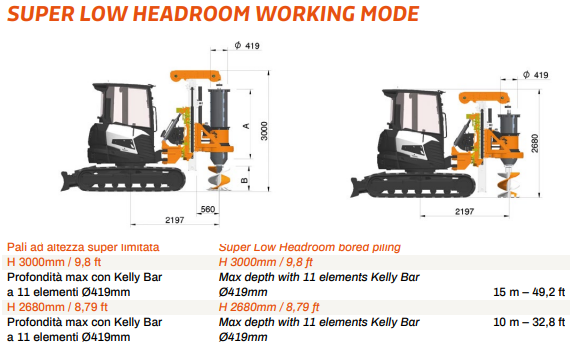

Tescar TT3 confined access low headroom LDP piling rigTescar TT3 confined access low headroom LDP piling rig
- Equipment

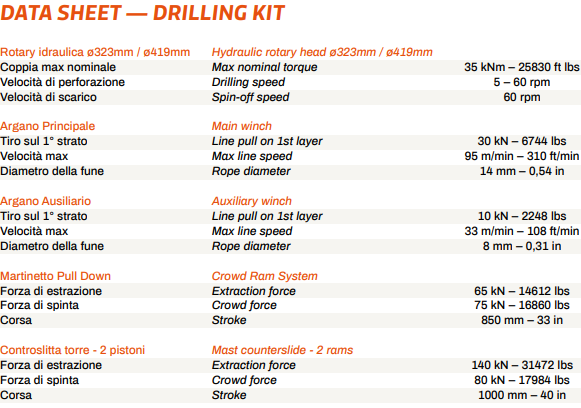

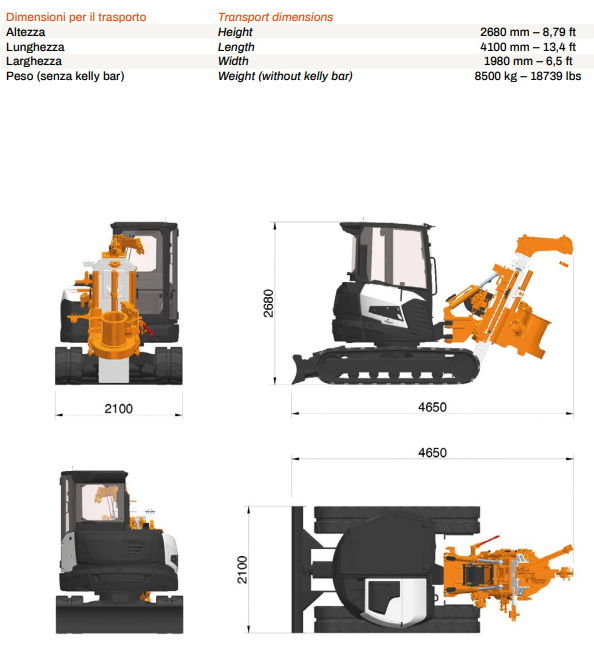

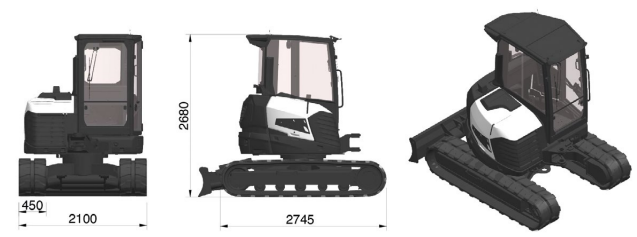

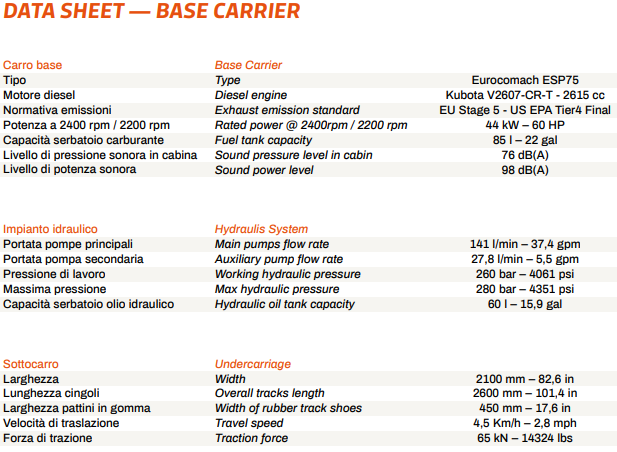

- Specification

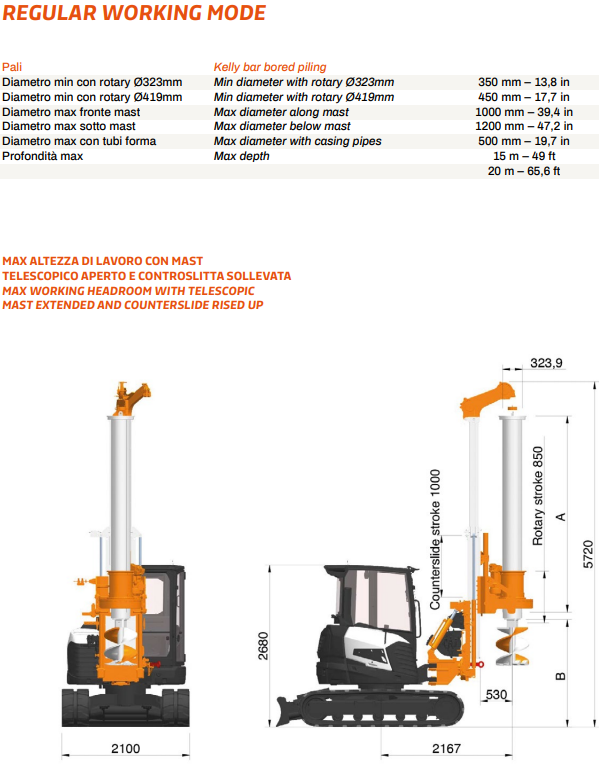

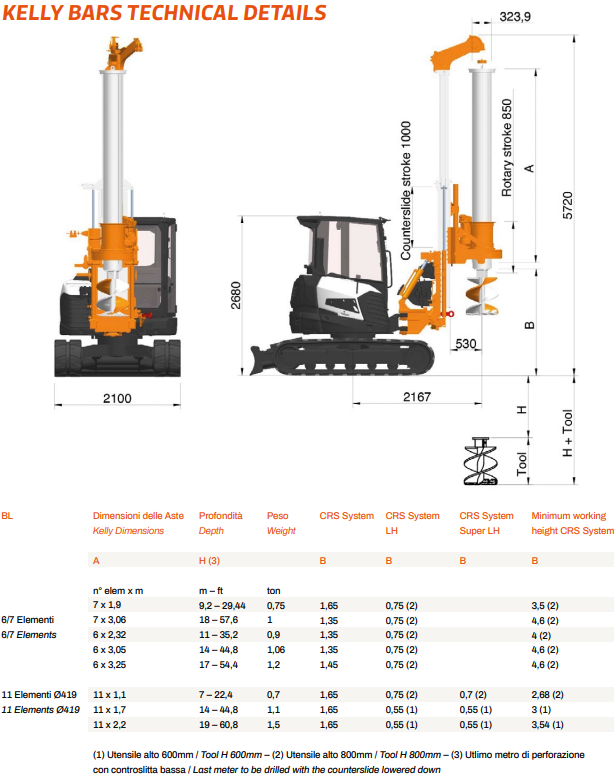

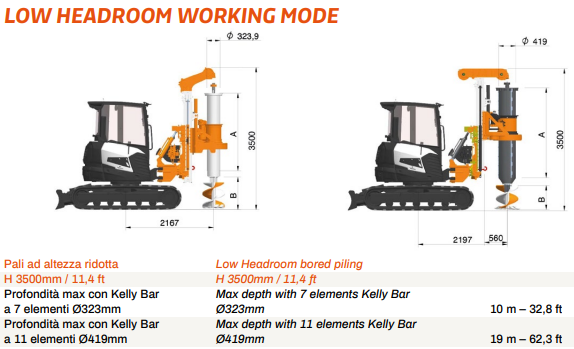

- Drilling Modes
Standard Equipment
EU Stage 5 / US EPA Tier 4 Final compliant diesel engine
Depth measurement device with on-board screen
Automatic control of rotary motors displacement
Rotary knockback system for quick tool discharge
Main and auxiliary winch controlled descent type
Hoist limit switch on main rope
Quick-release hydraulic couplers
Swivel head on main rope
Aux rope hooking point
Transport security lugs on crawler units
Beating flange for bucket opening
On-board lighting set
On-board tool box
ROPS and TOPS compliant cab with optimum visibility,
adjustable ergonomic seat, joystick controls, acoustic
and optic warning
FOPS level 1 compliant protective grid
Heat and air conditioning system
Digital screen for engine parameters control
Radio with USB plug and Bluetooth connection
Emergency stop button on-board
Emergency stop button outside the cab
Optional Equipment
Automatic vertical mast alignment
Rotary flange for casing pipes driving
Cardonic joint for rotary
Mast extension for special working configurations
Rear view camera with onboard colours screen
Mast verticality device with onboard screen
