TT5-LDP
Tescar TT5 advanced compact rotary drilling rig-
15.5 tWeight
-
53.7 kWEngine Power
-
50 KNmTorque
-
80 kNExtraction Force
-
50 RPMRotary Head Speed
-
27 (6 x 5.25) MRotary Depth
-

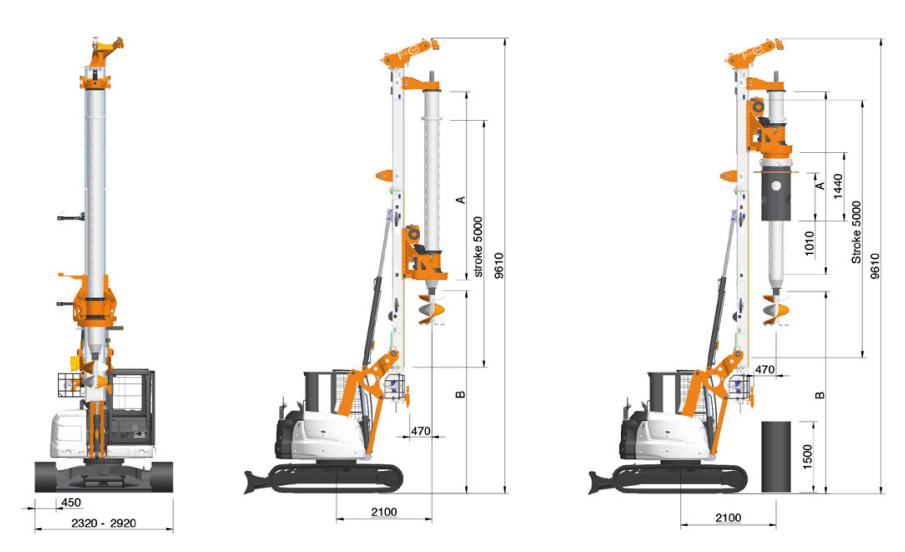

2320/2920 MMTrack Width Retracted/Extracted
-
3076 MM
Track Length
-
450 MM
Track Pad Width

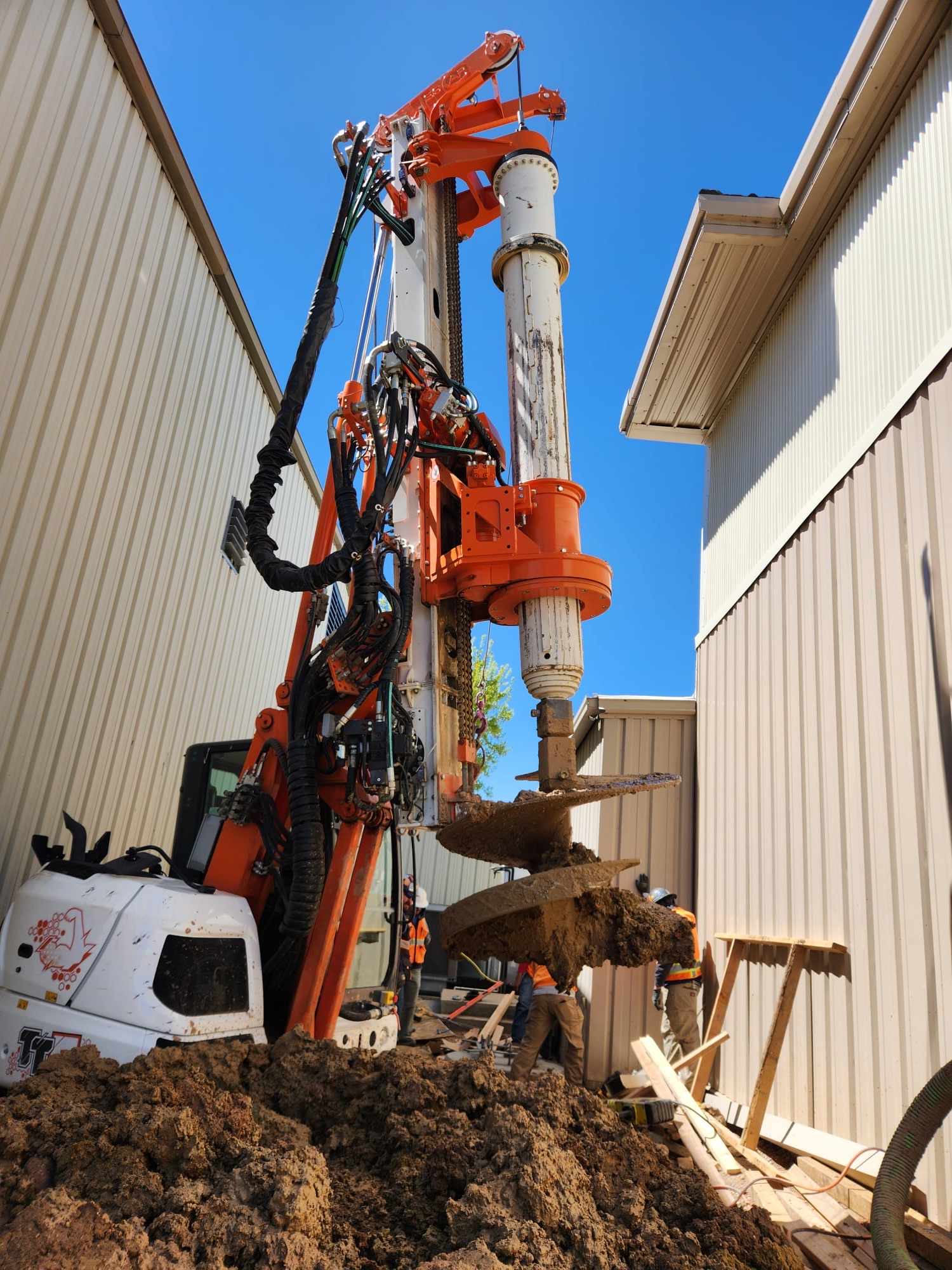

TesCar TT5 - Confined Access Piling Rig

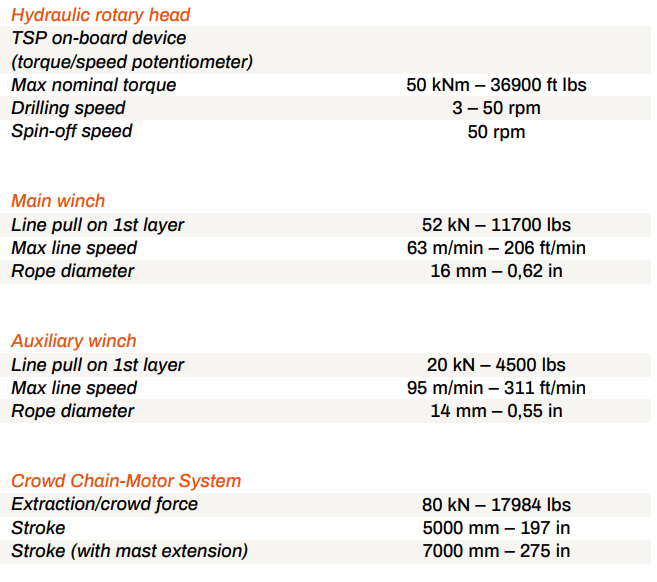

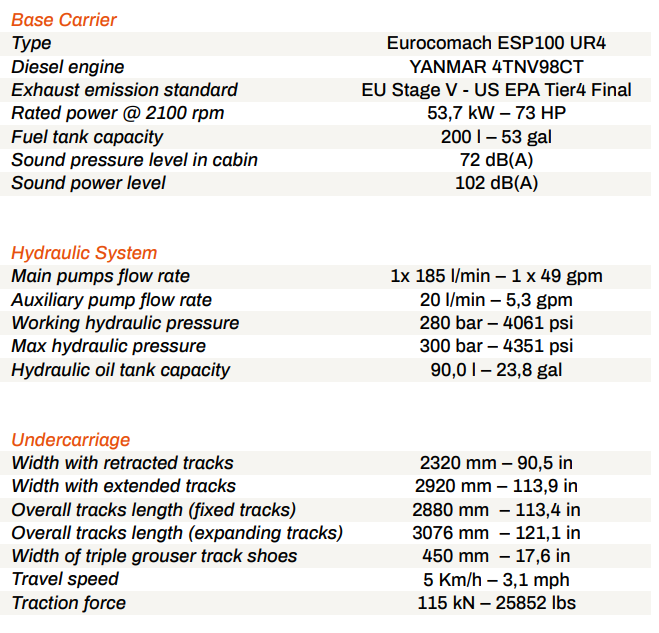

- Technical
- Standard Equipment
- Optional Equipment
EU Stage V / US EPA Tier 4 Final compliant diesel engine
TSP device (Torque/Speed Potentiometer)
Depth measurement device with on-board screen
Automatic control of rotary motors displacement
Rotary knockback system for quick tool discharge
Main and auxiliary winch controlled descent type
Hoist limit switch on main and aux ropes
Quick-release hydraulic couplers
Swivel head on main rope
Aux rope hooking point
Heavy duty steel undercarriage
Transport security lugs on crawler units
kelly bar top guide
Beating flange for bucket opening
On-board lighting set
On-board tool box
ROPS compliant cab with optimum visibility, adjustable ergonomic
seat, joystick controls, acoustic and optic warning
FOPS compliant protective grid
Heat and air conditioning system
Rear view camera with on-board display
Main winch camera with on-board display
Mast verticality device with on-board screen
Digital screen for engine parameters control
Radio with MP3 player and USB plug
Emergency stop button on-board
Emergency stop button outside the cab
Limit switches on the cathead, on the mast and on the parallelogram
Eu Stage IIIA – US EPA Tier 3 compliant diesel engine
Variable gauge undercarriage
Automatic vertical mast alignment
Rotary flange for casing pipes driving
Cardonic joint for rotary
Mast extension for special working configurations
Computer board for drilling parameter measurements, complete
with software for processing the data to the PC
On-board electronic device compatible with the technical
requirements of the Italian National Plan ‘INDUSTRIA 4.0’
for the purchase of capital goods with Tax Credit
