TT8 LDP/CFA
Tescar TT8 advanced compact rotary piling rig-
24.5 tWeight
-
80 kWEngine Power
-
80 KNmTorque
-
170 kNExtraction Force
-
55 RPMRotary Head Speed
-
800 MMCFA Diameter
-
16 MCFA Depth
-
2000 MM
Rotary Diameter
-
32 M
Rotary Depth

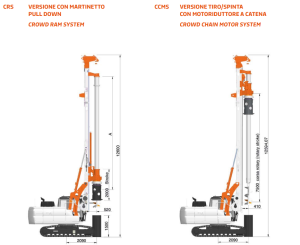

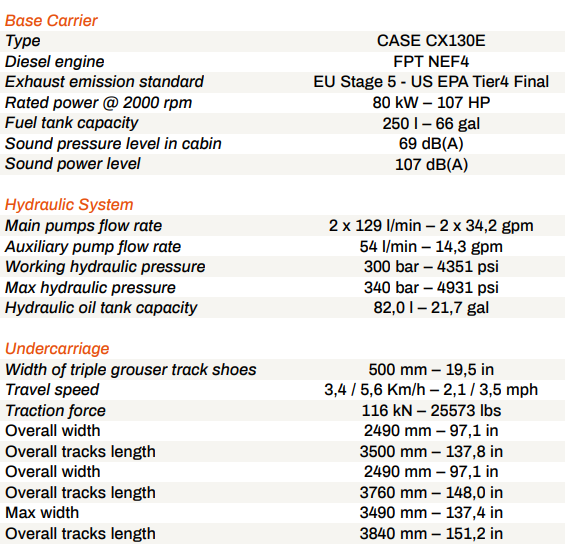

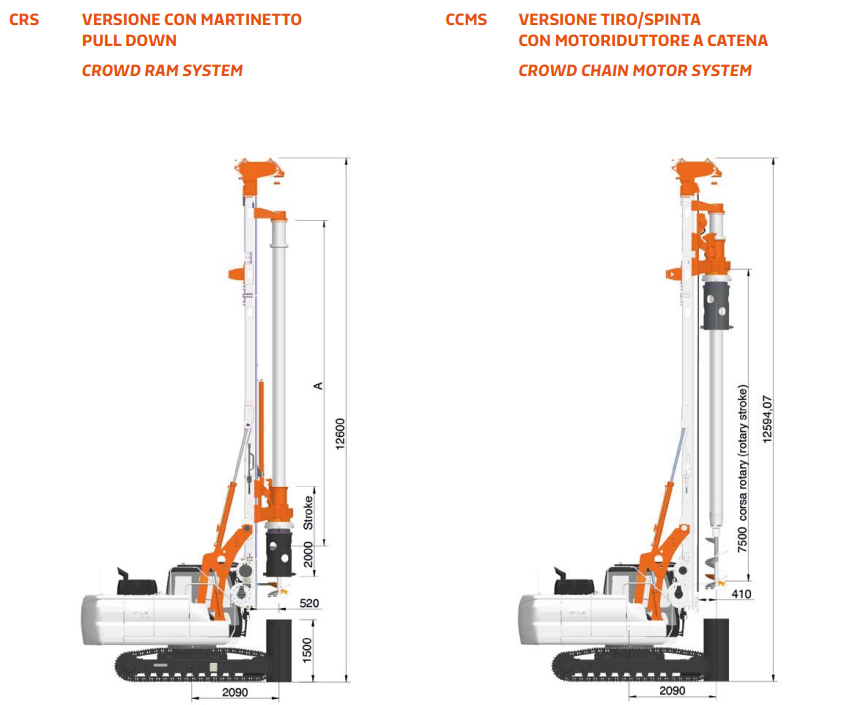

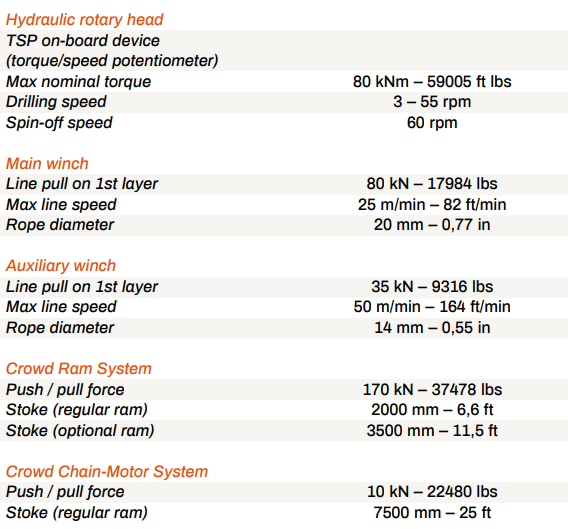

- Technical

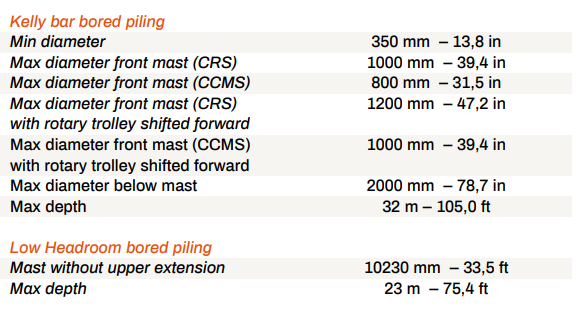

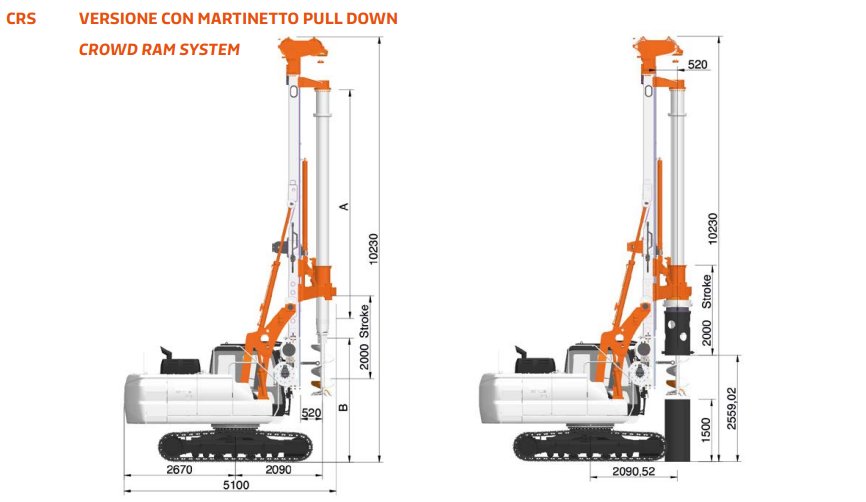

- LDP Specification

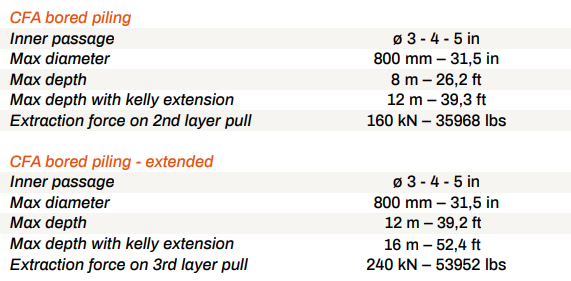

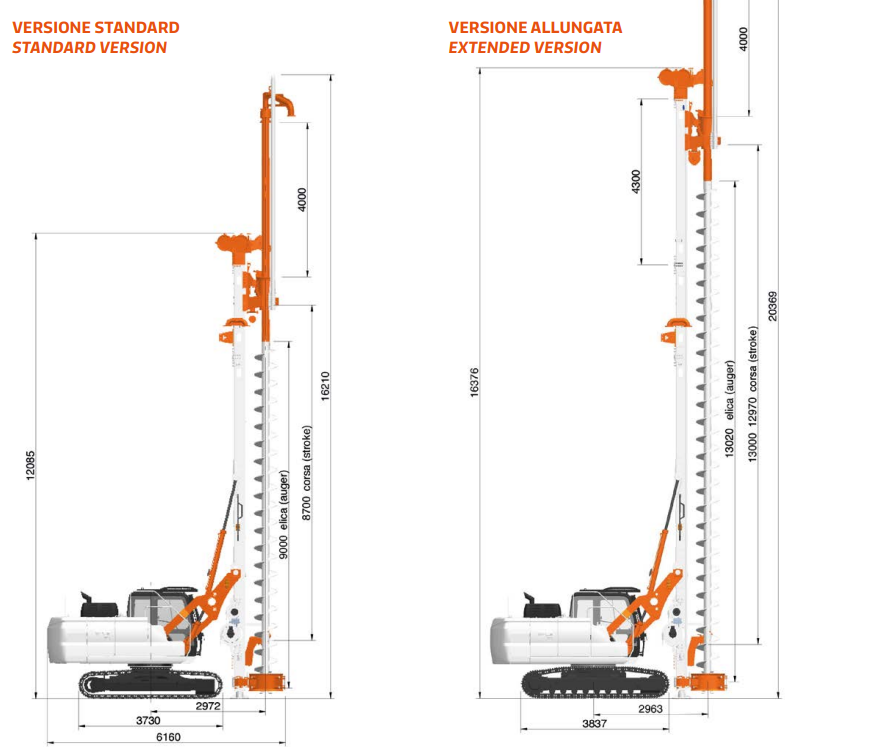

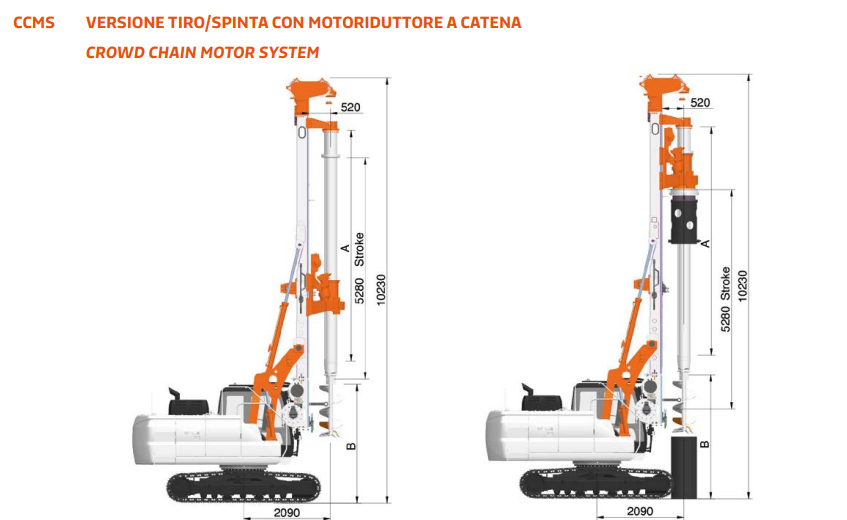

- CFA Specification
Standard Equipment
EU Stage V / US EPA Tier 4 Final compliant diesel engine
TSP device (Torque/Speed Potentiometer)
Kinematic parallelogram for the mast movement
Adjustable rotary trolley to increase the wheelbase between
the mast and the rotary centre and improve the drilling diameter
up to 1200mm
Depth measurement device with on-board screen
Automatic control of rotary motors displacement
Rotary knockback system for quick tool discharge
Main and auxiliary winch controlled descent type
Hoist limit switch on main and aux ropes
Quick-release hydraulic couplers
Swivel head on main rope
Aux rope hooking point

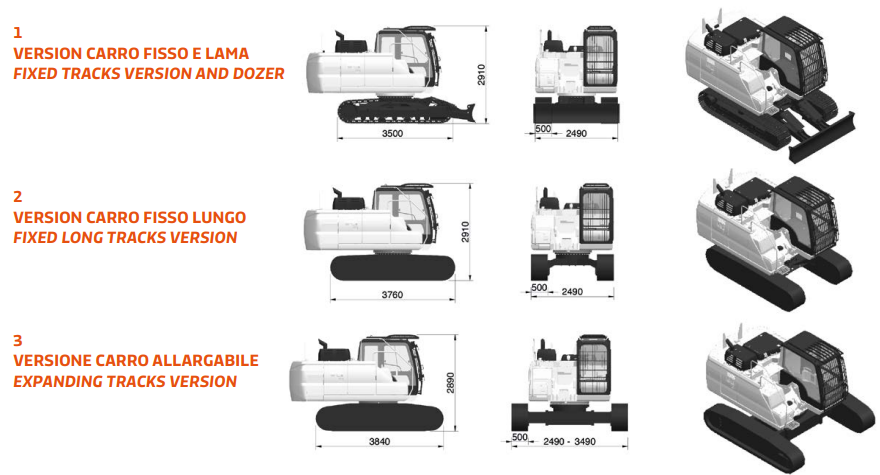

Heavy duty steel undercarriage with expanding tracks
Transport security lugs on crawler units
kelly bar top guide
Beating flange for bucket opening
On-board lighting set
On-board tool box
ROPS compliant cab with optimum visibility, adjustable ergonomic
seat, joystick controls, acoustic and optic warning
FOPS compliant protective grid
Heat and air conditioning system
Rear and lateral view camera with on-board display
Mast verticality device with on-board screen
Digital screen for engine parameters control
Radio with MP3 player and USB plug
Emergency stop button on-board
Emergency stop button outside the cab
Limit switches on the cathead, on the mast and on the parallelogram
Optional Equipment
Eu Stage IIIA – US EPA Tier 3 compliant diesel engine
Automatic vertical mast alignment
Rotary flange for casing pipes driving
Cardonic joint for rotary
Mast extension for special working configurations
Auger cleaning device – star type with ropes – for CFA
Additional crowd winch for CFA – 40 kN / 9000 lbs
Computer board for drilling parameter measurements in CFA mode,
complete with software for processing the data to the PC
On-board electronic device compatible with the technical
requirements of the Italian National Plan ‘INDUSTRIA 4.0’
for the purchase of capital goods with Tax Credit
