VDW 1407

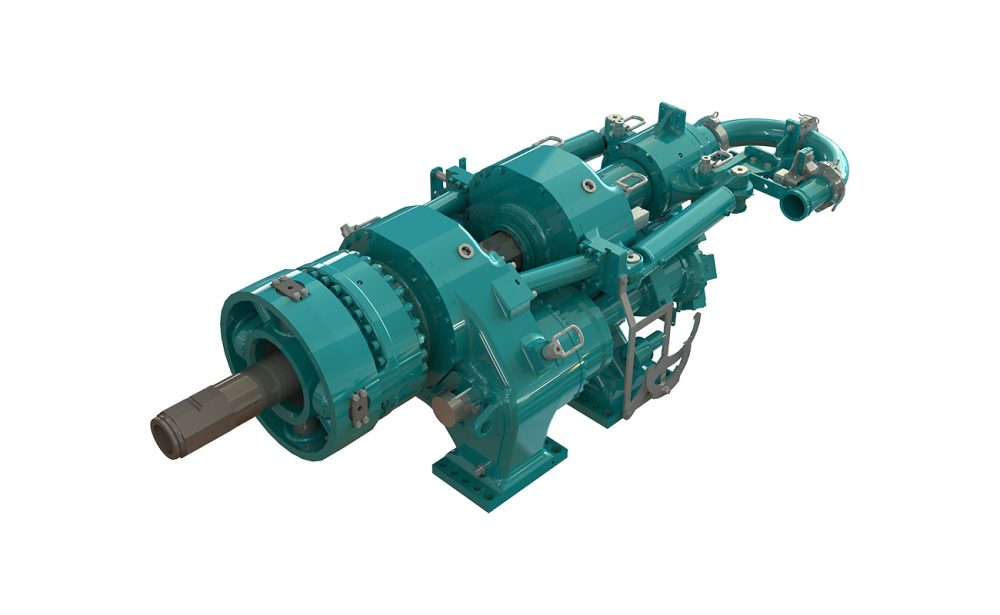

Unleash powerful performance with the Eurodrill VDW1407 rotary head—delivering up to 140 kNm torque and 70 RPM. Designed for precision in secant pile wall construction, it features robust engineering, compact design, and reliable hydraulic or electric shifting.
  • 500 kN

    Extraction Force

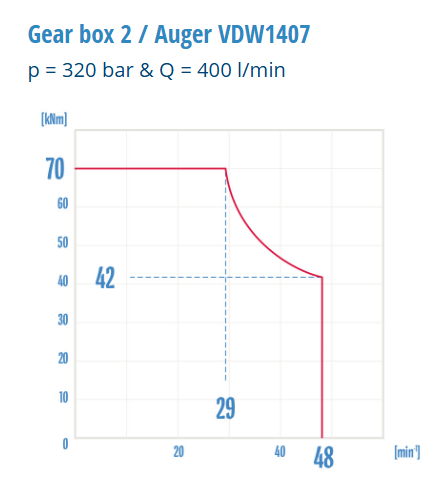

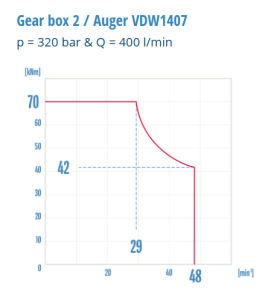

  • 48 RPM

    Rotary Head Speed

  • 3950 KG

    Weight

  • 70 RPM

    Rotary Head Max Drilling Speed

  • 400 LPM

    Rotary Hydraulic Flow

  • 320 Bar

    Rotary Hydraulic Pressure

  • 36 kNm

    Max Speed Casing Head

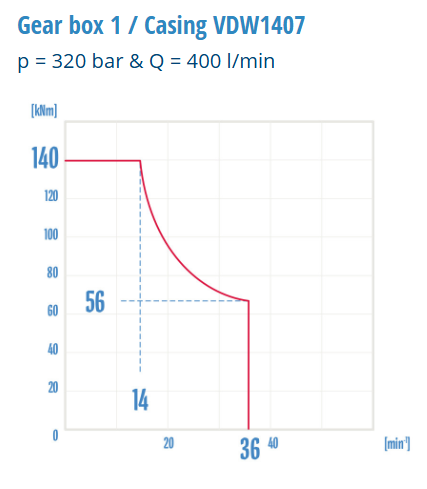

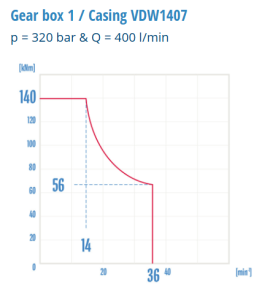

  • 140 kNm

    Max Torque Casing Head

  • 400 LPM

    Casing Head Hydraulic Flow

  • 320 Bar

    Casing Head Hydraulic Pressure
