CF6 – LDP

Tescar CF6 confined access and mini piling machine based on a 20 ton chassis

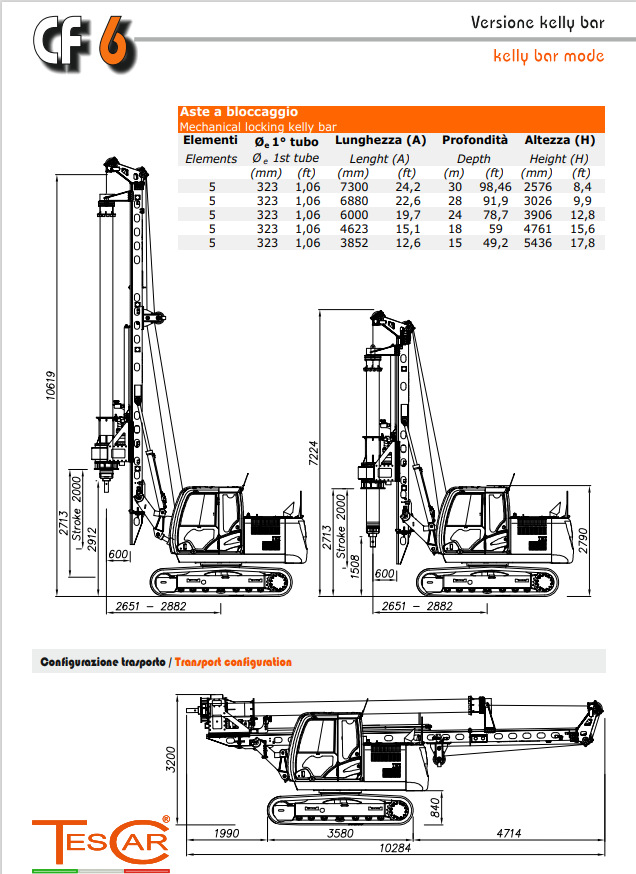

Product Catalogue CF6 - Brochure

download

Base Carrier
Type	Case CX130D
Diesel engine	Isuzu AR-4JJ1X
Exhaust emission standard	EU Stage V – US EPA Tier4
Rated power @ 2300 rpm	78,5	kW
Fuel tank capacity	260	L
Sound pressure level in cabin	69	dB(A)
Sound power level	107	dB(A)

Hydraulic System
Main pumps flow rate	2 x 129	l/min
Auxiliary pump flow rate	54	l/min
Working hydraulic pressure	300	bar
Max hydraulic pressure	340	bar
Hydraulic oil tank capacity	82	l

Undercarriage
Overall tracks width	2490	mm
Overall tracks length	3580	mm
Width of triple grouser track shoes	500	mm
Travel speed	5,6	Km/h
Traction force	116	kN

Hydraulic rotary head
Max nominal torque	60	kNm
Max drilling speed	30	rpm
Spin-off speed	60	rpm

Main winch
Line pull on 1st layer	80	kN
Max line speed	25	m/min
Rope diameter	20	mm

Auxiliary winch
Line pull on 1st layer	35	kN
Max line speed	50	m/min
Rope diameter	14	mm

Crowd Ram System
Extraction force	150	kN
Crowd force	120	kN
Stroke	2000	mm

Crowd Chain-Motor System
Extraction/crowd force	80	kN
Stoke	6150	mm

Kelly bar bored piling
Min diameter	350	mm
Max diameter along mast	1200	mm
Max diameter below mast	2000	mm
Max diameter with casing pipes	800	mm
Max depth	30	m

Low Headroom bored piling
Working height with mast support up	7660	mm
Working height with mast support dow 7124	7124	mm
Max depth	18	m

Super Low Headroom bored piling
Working height with mast supporto up 6100	6100	mm
Working height with mast supporto do 5700	5700	mm
Max depth	15	m
