CF3S – LDP
Tescar Hydraulic piling rig CF3S and CF3S Plus is compact confined access low headroom LDP Piling rig-
11 - 13 tWeight
-
53.7 kWEngine Power
-
35 -45 KNmTorque
-
48 kNExtraction Force
-
60 RPMRotary Head Speed
-
1500 MMRotary Diameter
-
22 MRotary Depth
Tescar LDP Confined Access Piling Rig
- Equipment
- Specification
- Dimensions
Standard Equipment
EU Stage V / US EPA Tier 4 Final compliant diesel engine
TSP device (Torque/Speed Potentiometer)
Depth measurement device with on-board screen
Automatic control of the rotary motors displacement
Rotary knockback system for quick tool discharge
Main and auxiliary winch controlled descent type
Hoist limit switch on main rope
Quick-release hydraulic couplers
Swivel head on main rope
Aux rope hooking point
Heavy duty steel undercarriage
Transport security lugs on crawler units
On board lighting set
On board tool box
ROPS compliant cab with optimum visibility, adjustable ergonomic
seat, joystick controls, acoustic and optic warning
FOPS Level 1 compliant top-cab protective grid
Heat and air conditioning system
Mast verticality device with on-board screen
Digital screen for engine parameters control
Standard Equipment Cont..
Radio with MP3 player and USB plug
On-board emergency stop button
External emergency stop button for ground operator
Limit switches on the cathead, on the mast and on the kingpost
Optional Equipment
Diagonal cathead
Hinge for lateral tilting of the cathead
Mast verticality device with onboard screen
Automatic vertical mast alignment
Beating fange for bucket opening
Rotary fange for casing pipes driving
Cardonic joint for rotary
Mast counterslide
FOPS Level 2 compliant front-cab protective grid
Electronic on-board device for the control and management
of the machine parameters in the various conditions of use
and for the eventual troubleshooting.

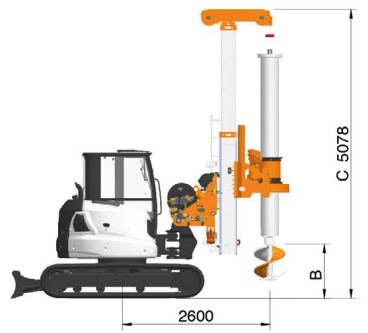

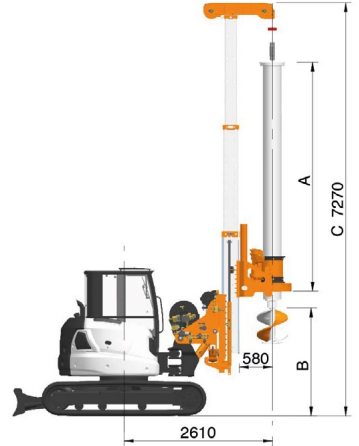

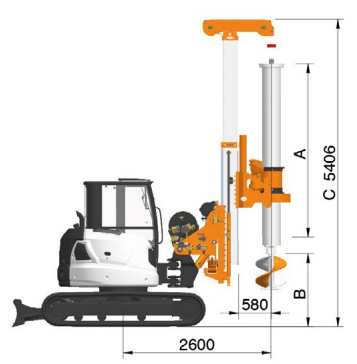

| Base Carrier | |
| Type | Eurocomach ESP100 ZT4 |
| Diesel engine | Yanmar 4TNV98CT TURBO |
| Exhaust emission standard | EU Stage5 – US EPA Tier4 Final |
| Rated power @ 2100 rpm | 53,7 kW |
| Fuel tank capacity | 105 l |
| Sound pressure level in cabin | 72 dB(A) |
| Sound power level | 102 dB(A) |
| Undercarriage | |
| Width | 2320 mm |
| Overall tracks length | 2880 mm |
| Width of rubber track shoes | 450 mm |
| Travel speed | 5,1 Km/h |
| Traction force | 79,6 kN |
| Hydraulic System | |
| Main pumps fow rate | 1x 185 l/min |
| Auxiliary pump fow rate | 20 l/min |
| Working hydraulic pressure | 280 bar |
| Max hydraulic pressure | 300 bar |
| Hydraulic oil tank capacity | 90,0 l |
| CF3S | CF3S Plus | |
| Rotary Head | Rotary head ø323mm/ø419mm – 1 motor | Rotary head ø323mm/ø419mm – 2 motors |
| Max nominal torque | 35 kNm | 45 kNm |
| Max drilling speed | 0 – 60 rpm | 0 – 60 rpm |
| Spin-of speed | 60,0 rpm | 60,0 rpm |
| Main winch | ||
| Line pull on 1st layer | 48 kN | 48 kN |
| Max line speed | 152 m/min | 152 m/min |
| Rope diameter | 16 mm | 16 mm |
| Auxiliary winch | ||
| Line pull on 1st layer | 10 kN | 10 kN |
| Max line speed | 33 m/min | 33 m/min |
| Rope diameter | 8 mm | 8 mm |
| Crowd Ram System | ||
| Extraction force | 115 kN | 115 kN |
| Crowd force | 130 kN | 130 kN |
| Stroke | 700 mm | 700 mm |
| Mast counter slide (Telescopic) | ||
| Extraction force | 120 kN | |
| Crowd force | 60 kN | |
| Stroke | 1000 mm | |
| Standard Kelly bar bored piling | CF3S | CF3S Plus |
| Min diameter with rotary Ø323mm | 350 mm | 350 mm |
| Min diameter with rotary Ø419mm | 450 mm | 450 mm |
| Max diameter along mast | 1000 mm | 1000 mm |
| Max diameter below mast | 1500 mm | 1500 mm |
| Max diameter with casing pipes | 600 mm | 600 mm |
| Max depth | 22 m | 22 m |

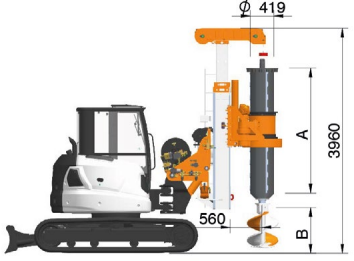

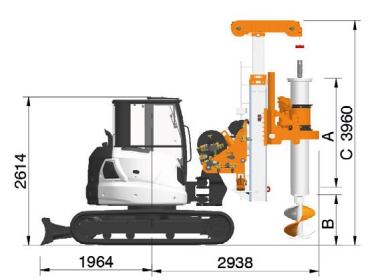

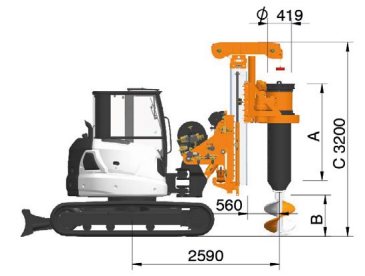

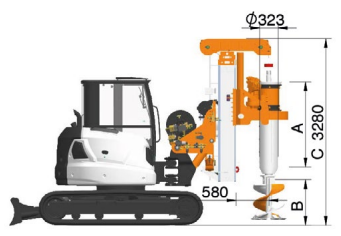

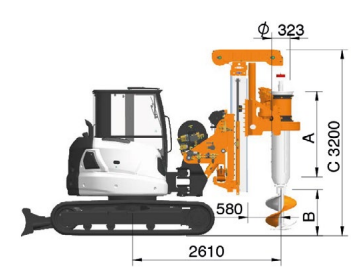

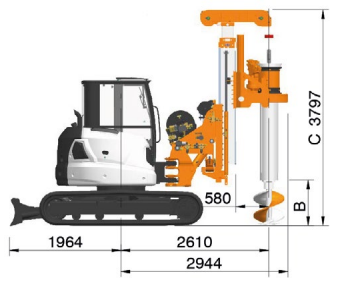

| Low Headroom bored piling | ||
| H 3960mm / H3200 mm | ||
| Depth with KB Ø323mm | ||
| 7 x 1920mm / 7 x 1700mm | 10 m | 7 m |
| Depth with KB Ø419mm | ||
| 11 x 2200mm / 11 x 1700mm | 18 m | 15 m |

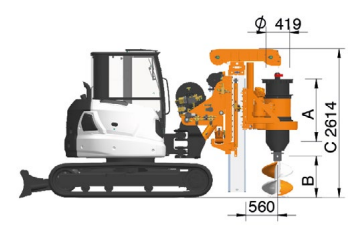

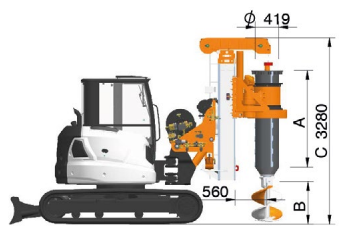

| Low Headroom bored piling | ||
| H 3280mm / H 2614mm | ||
| Depth with KB Ø323mm | 6,5 m | |
| 7 x 1500mm | ||
| Depth with KB Ø419mm | ||
| 11 x 1500mm / 11 x 1100mm | 15 m | 7 m |
