B200 XP-2

The Casagrande B200 XP-2 is a multifunctional hydraulic piling rig for foundation construction by drilling large and small boreholes in rotary piling.
  • 246 kW

    Engine Power

  • 290 kN

    Extraction Force

  • 68 M

    Rotary Depth

  • 700 MM

    Shoes Width

  • 250 kN

    Main Line Pull

  • 87 kN

    Aux Line Pull

  • 290 kN

    Crowd Force

  • 14000 MM

    Stroke Force

  • 210 kNm

    Rotary Head Torque

  • 38 RPM

    Drilling Speed

  • 65 T

    Operating Weight

  • 2500-3900 MM

    Width Of Crawer

Catalog icon
Product Catalogue B200XP-2
download
  • ABOUT
  • TECHINCAL
  • OPTIONS

INRODUCTION

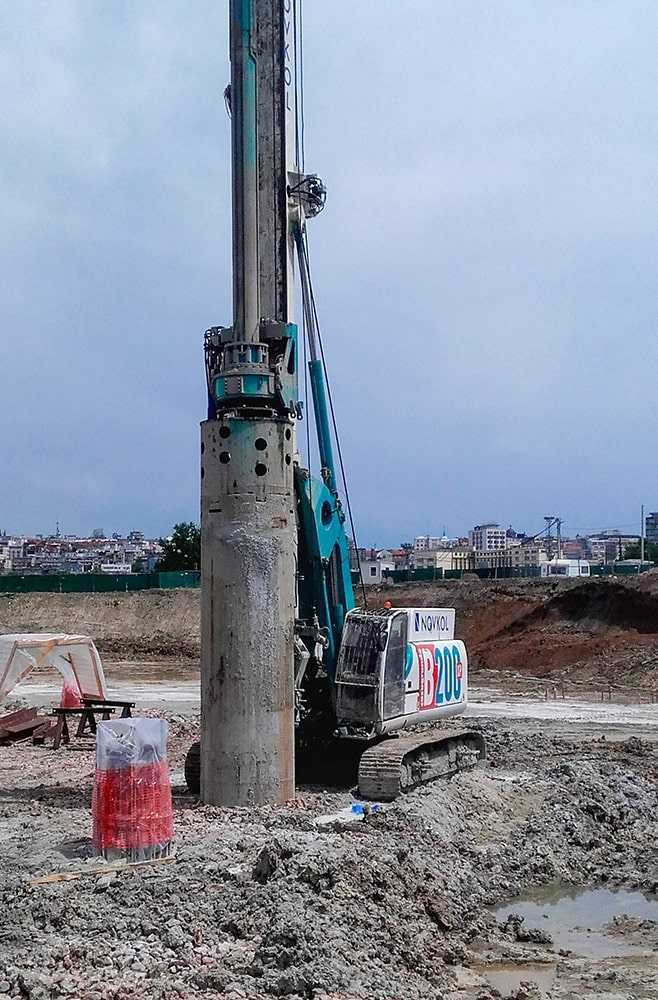

The Casagrande B200 XP-2 is a machine dedicated to giving the specialist contractor equipment to perform large diameter rotary and CFA piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the field of foundations and geotechnical engineering

The Casagrande B200 XP-2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment.

Designed to work on the most difficult sites and has excellent technical characteristics: 240 kN high speed winch for fast work, the H22 rotary head has a maximum torque output of 210 kNm and speed up to 34 rpm, it is ideal for drilling large and small diameter boreholes and for driving long casings.

“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B200 XP-2 is designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.

PERFORMANCE AND PRODUCTIVITY

The Smart Power Management (SPM) is an intelligent engine power management system that improves performances and productivity of the machinery. The SPM system monitors the momentary power flows and immediately allocates the available power to the different jobs, so the operation function has always the maximum power available.

SAFETY & TECHNOLOGY

The B200 XP-2 has a very low sound emission level as a result of the of sound-absorbing materials and oil heat exchangers, designed for reducing the overall noise level. The layout of the machine and the wide openings of the canopy offer comfortable and easy access for inspection and maintenance. The machine conforms to the last international standards to guarantee the maximum safety of the operations.

FULL LOAD SENSING TECHNOLOGY

The XP-2 hydraulic power system uses the Full Load Sensing (FLS) technology. Unlike the common hydraulic
managing systems, the FLS pressurizes only the required amount of oil requested by users thanks to the back-action between pumps and distributors. It allows to manage the power demands and reduces dissipations, achieving up to the 25% of fuel saving (calculated on the basis of a theoretical working cycle).

FLEXIBILITY

The XP-2 control system offers the following advantages for the operator and the supervision of the work: monitoring of all working function, diagnostic of the working systems to ensure the constant monitoring of the status of sensors and components, easy conversion in any drilling arrangement, friendly customization of working functions e.g. mappings of torque and speed for EP rotary head, remote rigs assistance, diagnostic, monitoring of working parameters.

FEATURE UK
Model B200 XP-2 Piling Rig
Max depth 68 m
Max diameter 2300 mm
Engine power 246 kW
Width of crawler 2500÷3900 mm
Shoes width 700 mm
MAIN WINCH
Line pull 250 kN
AUXILIARY WINCH
Line pull 87 kN
CROWD – RAM
Extraction force 260 kN
Crowd force 180 kN
Stroke 6000 mm
CROWD – WINCH
Extraction force 290 kN
Crowd force 290 kN
Stroke 14000 mm
ROTARY HEAD
Torque 210 kNm
Drilling speed 34 rpm
WEIGHT
Weight in working condition 65 t

STANDARD EQUIPMENT

  • SPM control system – Smart Power Management
  • 12″ touch screen display for visualization and drilling parameter settings
  • Mast lifting and lowering aid
  • Drilling depth measurement and automatic mast verticality control
  • Automatic idling mode with engine start/stop for fuel saving
  • Rotary shaking system for tool discharge
  • Hook on auxiliary line
  • Protective roof guard (FOPS compliant)
  • Air condition system
  • Cab side catwalk
  • Electric refueling pump

BASIC MACHINE

  • Railings on upper structure
  • Cab front board
  • Lateral catwalks and handrails
  • Water pre-heating system for starting engine at low temperatures
  • Automatic centralized greasing system
  • Cable remote control for tracking
  • Video unit with two cameras and one 7″ monitor to control winches and the rear of the machine
  • Automatic self-alignment on drilling
  • Casagrande FleetMaster remote rig control and monitoring via internet
  • Transport kit according to required transport configuration

ROTARY PILING EQUIPMENT

  • 1,7 m mast extension for extended mast version
  • Low headroom arrangement
  • Cardanic joint for rotary head
  • Auxiliary free fall winch 160 kN nominal line pull
  • Smart lowering and overload protection for main winch
  • Pull control for pull-down winch
  • Arrangement for casing oscillator
  • Casing oscillator up to GLL 1300

CFA EQUIPMENT

  • Measurement and visualization of extraction force
  • Mast support and undercarriage for CFA 360° arrangement
  • Rotating CFA cleaner hydraulically operated
  • Star CFA cleaner
  • CFA lower guide with hydraulic opening
  • Crowd winches for CFA. Max crowd force 2 x 43
  • Hydraulic vibrator for cages
  • CFA feed control
  • Instrument for measuring, displaying and recording of drilling parameters. The instrument is complete with software for processing the data on a PC
  • Instrument for continuous extraction of CFA
