B160 XP-2

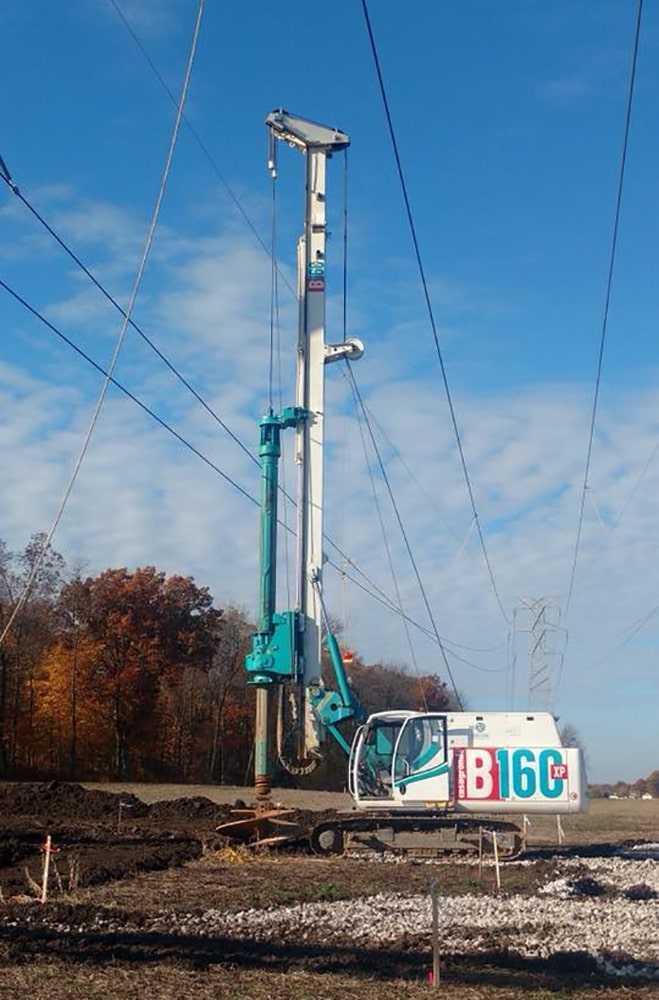

The Casagrande B160 XP-2 is a multifunctional hydraulic piling rig for foundation construction by drilling large and small boreholes in rotary piling.
  • 186 kW

    Engine Power

  • 160 KNm

    Torque

  • 205 kN

    Extraction Force

  • 600 MM

    Shoes Width

  • 165 kN

    Main Line Pull

  • 75 kN

    Aux Line Pull

  • 205 kN

    Crowd Force

  • 5200 MM

    Stroke Force

  • 160 kNm

    Rotary Head Torque

  • 32 RPM

    Drilling Speed

  • 41 T

    Operating Weight

  • 2500-3700 MM

    Width Of Crawer

Catalog icon
Product Catalogue B160XP-2
download
  • ABOUT
  • technical
  • OPTIONS

INTRODUCTION

The Casagrande B160 XP-2 is a machine dedicated to giving the specialist contractor equipment to perform large diameter rotary and CFA piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the fi eld of foundations and geotechnical engineering.

Designed to work on the most difficult sites and has excellent technical characteristics: 160 kN high speed winch for fast work, the H16 rotary head has a maximum torque output of 160 kNm and speed up to 32 rpm, it is ideal for drilling large and small diameter boreholes.

The SPM (Smart Power Management) allows intelligent engine power management in order to improve the performance and productivity of machinery. The XP technology monitors the instantaneous power and hydraulic fl ows and allocates the full available power according to the requirements of the task. The result is an increase in the machine effi ciency.

“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B160 XP-2 is designed to satisfy the severe European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality.

PERFORMANCE AND PRODUCTIVITY

The Smart Power Management (SPM) is an intelligent engine power management system that improves performances and productivity of the machinery. The SPM system monitors the momentary power flows and immediately allocates the available power to the different jobs, so the operation function has always the maximum power available.

FULL LOAD SENSING TECHNOLOGY

The XP hydraulic power system uses the Full Load Sensing (FLS) technology. Unlike the common hydraulic
managing systems, the FLS pressurizes only the required amount of oil requested by users thanks to the back-action between pumps and distributors. It allows to manage the power demands and reduces dissipations, achieving up to the 25% of fuel saving (calculated on the basis of a theoretical working cycle).

SAFETY & TECHNOLOGY

The B160 XP-2 has a very low sound emission level as a result of the of sound-absorbing materials and oil heat exchangers, designed for reducing the overall noise level. The layout of the machine and the wide openings of the canopy offer comfortable and easy access for inspection and maintenance. The machine conforms to the last international standards to guarantee the maximum safety of the operations.

FLEXIBILITY

The XP control system offers the following advantages for the operator and the supervision of the work: monitoring of all working function, diagnostic of the working systems to ensure the constant monitoring of the status of sensors and components, easy conversion in any drilling arrangement, friendly customization of working functions e.g. mappings of torque and speed for EP rotary head, remote rigs assistance, diagnostic, monitoring of working parameters.

FEATURE UK
Max depth 50 m
Max diameter 2100 mm
Engine power 186 kW
Width of crawler 2500÷3700 mm
Shoes width 600 mm
WINCHES
MAIN WINCH
Line pull 165 kN
AUXILIARY WINCH
Line pull 73 kN
CROWD – RAM
Extraction force 205 kN
Crowd force 130 kN
Stroke 5200 mm
CROWD – WINCH
Extraction force 290 kN
Crowd force 290 kN
Stroke 14000 mm
ROTARY HEAD
Torque 160 kNm
Drilling speed 32 rpm
WEIGHT
Weight in working condition 41 t

STANDARD EQUIPMENT

  • SPM control system – Smart Power Management
  • 12″ touch screen display for visualization and drilling parameter settings
  • Mast lifting and lowering aid
  • Drilling depth measurement and automatic mast verticality control
  • Automatic idling mode with engine start/stop for fuel saving
  • Rotary shaking system for tool discharge
  • Hook on auxiliary line
  • Protective roof guard (FOPS compliant)
  • Air condition system
  • Cab side catwalk
  • Electric refueling pump

BASIC MACHINE

  • Undercarriage with 800 mm wide track shoes
  • Cab front board
  • Lateral catwalks and handrails
  • Water pre-heating system for starting engine at low temperatures
  • Automatic centralized greasing system
  • Cable remote control for tracking
  • Video unit with two cameras and one 7″ monitor to control winches and the rear of the machine
  • Automatic self-alignment on drilling
  • Casagrande FleetMaster remote rig control and monitoring via internet

ROTARY PILING EQUIPMENT

  • Rotary head extension to increase the drilling diameter
  • Low headroom arrangement
  • Rotary shaking system for tool discharge
  • Cardanic joint for rotary head
  • Smart lowering and overload protection for main winch
  • Main free fall winch 135 kN nominal line pull
  • Auxiliary free fall winch 40 kN nominal line pull
  • Pull control for pull-down winch
  • Arrangement for casing oscillator
  • Casing oscillator up to GLL 1300

CFA EQUIPMENT

  • HD mast support for special arrangements (CFA 25)
  • Mast support and undercarriage for CFA 360° arrangement
  • Rotating CFA cleaner hydraulically operated
  • Star CFA cleaner
  • CFA guide with hydraulic opening
  • Crowd winches for CFA. Max crowd force 2 x 23 = 46
  • Hydraulic vibrator for cages
  • Instrument for measuring, displaying and recording of drilling parameters. The instrument is complete with software for processing the data on a PC
  • Instrument for continuous extraction of CFA
